How to Install a Hitch Back Rack for Your E-Bike on a Car or SUV

How to Install a Hitch Back Rack for Your E-Bike

Installing an e-bike hitch rack requires careful attention to tongue weight, hitch size (most e-bike racks require a 2-inch Class III receiver), and proper securing mechanisms due to the heavy weight of electric bicycles.

1. Verify Weight Ratings

E-bikes typically weigh 50–80 lbs each.

• Check your vehicle's tongue weight limit (the downward weight the hitch can support).
• Ensure the rack's per-bike weight capacity exceeds your specific e-bike weight.
• Do not use hitch adapters (e.g., 1.25" to 2" sleeves) unless explicitly rated for e-bike loads, as adapters can cut tongue capacity by up to 50%.

2. Insert Rack into Hitch Receiver

• Clear dirt or rust from the receiver tube.
• Slide the rack's shank into the hitch receiver until the pin holes align.
• Insert the threaded anti-rattle hitch pin through the hole and hand-tighten.

3. Tighten and Lock the Anti-Rattle System

This is crucial to prevent violent rocking on bumps.

• Use a wrench or socket to torque the threaded hitch pin firmly against the receiver wall.
• Install the safety clip or lock onto the end of the hitch pin.
• If the rack features an expanding wedge knob or cam system, turn it clockwise until there is zero play when you shake the rack.

4. Unfold Rack & Adjust Wheel Trays

• Pull the tilt/release lever to drop the rack from its folded travel position into the horizontal loading position.
• Loosen the wheel cradles and position them to match your e-bike's wheelbase and tire width, especially for fat tire models.

5. Prep the E-Bike (Remove Battery)

• Remove the battery and store it inside your vehicle. This sheds 7–12 lbs per bike, reducing structural strain and protecting delicate electronics from road vibrations and weather.
• Remove accessories like panniers, water bottles, and handlebar bags.

6. Load and Secure the E-Bike

• Heaviest bike first: Place the heaviest bike in the tray closest to the vehicle.
• Roll the bike up the integrated ramp (or lift it into place) with the front wheel firmly in the front chock.
• Clamp the ratcheting arm down over the front tire, placing it snug against the fork brace and avoiding the frame/fenders if plastic.
• Ratchet the heavy-duty straps through both the front and rear wheels.

Pre-Trip Checklist

• Check Clearance: Confirm adequate ground clearance and exhaust tailpipe clearance. Hot exhaust can melt tires.
• Shake Test: Grasp the bike frame and firmly shake the system. The vehicle should rock on its suspension without any clicking or loose movement in the hitch.
• Retighten: Re-check all pins, straps, and clamps after the first 10–15 miles of driving.

The Advantages of Using a Hitch Bike Rack

A hitch bike rack mounts directly into a vehicle's receiver hitch, making it one of the sturdiest, most convenient ways to transport bicycles.

Key Advantages

• Effortless Loading & Unloading: Bikes mount at waist level, eliminating the need to hoist heavy frames overhead onto a roof rack.
• Superior Weight Capacity: Built with robust steel or aluminum frames capable of handling heavy downhill bikes, fat bikes, and electric bikes (e-bikes) that exceed trunk-rack limits.
• Better Fuel Efficiency & Aerodynamics: Placing bikes behind the vehicle minimizes wind resistance compared to rooftop mounts, saving fuel/battery range and reducing wind noise.
• Low Clearance Safety: Eliminates the risk of driving into low-clearance garages, drive-thrus, or parking structures with bikes on top.
• Vehicle & Frame Protection: Sturdy locking mechanisms and tray-mount designs prevent metal-on-metal contact between bikes and keep gear away from the vehicle's paint.
• Trunk & Tailgate Access: Most models feature tilt-away or swing-away functions, allowing rear hatch access without having to take the bikes off.

Hitch Rack vs. Other Bike Racks

Bike Rack Installation

The installation process depends on the type of rack being installed. Below are the key installation steps for the most common bike rack setups:

1. Vehicle Hitch-Mounted Bike Rack

1. Verify Hitch Size: Ensure the rack's shank matches your vehicle's receiver size (standard sizes are 1.25" or 2"). Use an adapter or anti-wobble shim if required.
2. Insert the Shank: Slide the rack shank directly into the hitch receiver tube until the hitch-pin holes line up.
3. Secure the Hitch Pin: Thread or insert the hitch pin/locking bolt through the receiver and tighten with a wrench to eliminate rack wobble. Fasten the cotter pin or lock head on the opposite side.
4. Unfold and Test: Unfold the rack into its carrying position, test clearance with the rear tailgate/bumper, and ensure brake lights and license plates remain sufficiently visible.

2. Vehicle Trunk-Mounted Bike Rack

1. Clean Contact Surfaces: Wipe down the vehicle's trunk lid and bumper to prevent trapped dirt from scratching the paint.
2. Position the Frame: Set the rack feet on the upper trunk flat surface and the lower bumper/trunk seam according to the manufacturer's angle chart.
3. Attach Straps in Pairs:
   • Top straps: Hook into the top seam of the trunk/hatch and tighten evenly.
   • Side straps: Hook into the lateral edges of the trunk lid.
   • Bottom straps: Hook under the bottom edge of the trunk lid or bumper.
4. Tension and Tie Off: Tighten all straps firmly until the rack cannot shift, and tie off excess strap length to prevent flapping at highway speeds.

3. Garage / Wall Storage Bike Rack

1. Locate Studs: Use a stud finder to locate wooden wall studs (or use heavy-duty masonry anchors for brick/concrete walls). Never hang loaded bike racks directly into hollow drywall.
2. Mark Mounting Height: Hold the rack or track against the wall, check level with a bubble level, and mark pilot hole locations at a height where bike wheels will clear the floor.
3. Drill Pilot Holes: Drill pilot holes using a bit slightly narrower than your lag screws (typically 3/16" or 1/4").
4. Fasten Securely: Drive heavy-duty lag bolts with washers through the rack mounting plate directly into the center of the studs.

4. Bicycle Frame Cargo / Pannier Rack (Rear)

1. Locate Mounting Eyelets: Identify the threaded eyelets near the rear dropouts (axle area) and on the seatstays.
2. Mount Lower Struts First: Loosely fasten the bottom rack arms to the lower frame eyelets using M5 hex bolts.
3. Attach Upper Extension Arms: Attach the upper stays to the seatstay eyelets (or use a seatpost clamp adapter if your frame lacks eyelets).
4. Level and Torque: Use a level to ensure the top rack platform is parallel to the ground, then torque all bolts to 4–6 Nm.

Hitch Installation for Bike Rack

Installing a trailer hitch receiver to carry a bike rack requires matching the vehicle frame mount, securing the hitch to specified torque values, and fitting the rack shank.

Step 1: Mount the Hitch Receiver to the Vehicle

1. Prep the Vehicle Frame: Ensure clear access under the rear bumper.
   Jack up the rear of the vehicle safely or use ramps. Lower the spare tire or temporarily detach exhaust rubber hangers if they block the frame rails. Clean out any rust or road grime from factory weld nuts using a wire brush and penetrating lubricant.
2. Position and Bolt the Hitch: Use fishwire if bolt holes are non-threaded.
   Support the hitch using a floor jack or a second person. Align the hitch brackets with the vehicle frame mounting points. Feed carriage bolts and spacer blocks through access holes using the included fishwire, or thread bolts directly into factory weld nuts with conical toothed washers facing the hitch.
3. Torque Hardware to Spec: Do not rely on hand-tightening.
   Snug all hardware evenly, then use a torque wrench to tighten every bolt to the manufacturer's exact torque rating (typically 40 to 110 lb-ft, depending on bolt diameter). Reattach any lowered exhaust hangers or heat shields.

Step 2: Mount the Bike Rack to the Receiver

• Check Receiver & Shank Size: Ensure receiver size matches the rack shank—most bike racks use 1.25" (Class I/II) or 2" (Class III). Use a 1.25"-to-2" adapter sleeve if using a multi-fit rack.
• Slide In & Align: Slide the rack shank into the hitch receiver opening until the hitch pin holes align.
• Install Anti-Rattle Pin/Bolt: Thread the anti-rattle hitch bolt through the receiver and rack shank. Tighten securely with a wrench to eliminate wobble, then insert the safety clip or lock head on the other side.
• Verify Clearance: Check that the rack does not contact the rear bumper, tailgate, or backup sensors when folded up or tilted down.

How to Install a Bike Rack on an SUV

The installation method depends entirely on the type of bike rack you have.

1. Hitch-Mounted Bike Rack (Most Common for SUVs)

A trailer hitch receiver (typically 1.25" or 2") is required.

1. Clear the Receiver:
   Wipe any dirt, mud, or rust from inside the SUV's hitch receiver tube.
2. Slide the Rack In:
   Insert the rack's shank into the hitch receiver until the pin holes align.
3. Secure the Hitch Pin/Bolt:
   • Insert the hitch pin or anti-rattle threaded bolt through the aligned hole.
   • Tighten the bolt with a wrench to eliminate wobble.
   • Attach the safety clip or lock on the opposite side.
4. Engage Anti-Wobble Mechanism:
   If your rack has an integrated wedge knob (cam system), turn the knob firmly to lock the shank tight inside the receiver.
5. Unfold & Test:
   Lower the rack into its carrying position and give it a firm shake to ensure there is zero play in the hitch.

2. Trunk/Hatch-Mounted Bike Rack (Strap-On)

Best for SUVs without a hitch receiver.

1. Clean the Contact Points:
   Wash and wipe down the rear windshield, hatch edges, and bumper. Dirt trapped under rubber pads will scratch vehicle paint.
2. Set the Arm Angle:
   Adjust the rack's hub/hinges so the bottom feet rest on the metal bumper (or lower hatch) and the upper feet rest against the middle of the back window or upper tailgate.
3. Attach Top Straps First:
   Hook the top straps into the seam at the top of the SUV hatch and pull them snug to support the rack's weight.
4. Attach Side & Bottom Straps:
   • Hook side straps to the left and right edges of the tailgate.
   • Hook bottom straps under the lower edge of the tailgate/bumper.
5. Tighten Evenly:
   Tighten opposing straps in pairs (top, then bottom, then sides) until the rack is centered and rigid. Tie off excess strap length to prevent flapping.

3. Roof-Mounted Bike Rack

Requires existing factory or aftermarket crossbars.

1. Space the Crossbars:
   Ensure your roof crossbars are spaced appropriately according to the bike tray manual (typically 24" to 36" apart).
2. Position the Tray:
   Center the bike tray front-to-back on the crossbars.
3. Clamp to Bars:
   Secure the front and rear mounting brackets/clamps around the crossbars using the provided hardware or quick-release levers.
4. Torque Evenly:
   Hand-tighten all bolts evenly until the clamps grip firmly without deforming the crossbars.

Safety & Pre-Drive Checklist

• Check Weight Limits: Confirm your SUV's tongue weight (for hitch racks) or roof load limit is not exceeded by the rack plus bikes.
• Rear Sensors & Cameras: Hitch racks often trigger backup sensors or block the backup camera; disable rear parking aid alerts in vehicle settings if needed.
• Retighten After 5 Miles: Stop after driving a short distance to check and retighten straps, hitch bolts, and wheel straps.

How to Install a Bike Hitch on a Car

Installing a hitch receiver onto your vehicle involves bolting a custom-fit receiver directly to the chassis frame rails.

Required Tools & Equipment

• Vehicle-specific hitch receiver (e.g., 1.25" or 2" Class I–III)
• Socket set, ratchet, and torque wrench
• Car ramps or floor jack with jack stands
• Fish wire / bolt leader (typically included with the hitch hardware)
• Safety glasses and penetrating lubricant (WD-40 or PB Blaster)

1. Prep Vehicle and Workspace

Always secure the vehicle before working underneath.

Park on level ground, engage the emergency brake, and elevate the rear using ramps or jack stands. Clean rust and debris from the chassis frame mounting holes using a wire brush and penetrating lubricant.

2. Lower Exhaust and Clear Obstructions

Applies to select car and SUV models.

Support the tailpipe with an exhaust strap or bungee cord, then unhook the rubber exhaust hangers to lower the muffler slightly. Remove heat shields or temporary underbody panels if specified in your hitch manual.

3. Feed Hardware into the Frame

Thread the coiled end of the fish wire through the access hole in the frame, slide on the carriage bolt spacer, and thread the bolt onto the coil. Pull the fish wire to guide the bolt down through the designated mounting hole.

4. Position and Secure the Hitch

Lift the hitch into place (using a jack or a helper) without pushing the bolts back into the frame. Start threading the conical tooth washers (teeth facing the hitch) and hex nuts onto each bolt by hand to prevent cross-threading.

5. Torque Hardware and Reassemble

Safety-critical step.

Tighten all bolts to the exact torque specifications (usually 40–85 ft-lbs) listed in the installation guide using a torque wrench. Reattach exhaust hangers, heat shields, and underbody trim.

6. Mount the Bike Rack

Slide the bike rack shank into the receiver tube, align the hitch pin holes, insert the threaded hitch pin or locking anti-rattle bolt, and secure the safety cotter pin or lock.

How to Load an E-Bike on a Bike Rack

Loading an e-bike safely requires managing its extra weight and protecting sensitive electronics.

1. Lighten the Bike

Reduces total weight by 7–10 lbs.

Power off the e-bike and remove the battery pack to store inside the vehicle. Remove detachable accessories like bags, water bottles, and displays to lower weight and reduce wind resistance.

2. Prep the Rack and Loading Area

Ensure your vehicle is parked on flat ground. If transporting multiple bikes, load the heaviest e-bike in the tray closest to the vehicle.

Fold down the rack arms and unbuckle all wheel straps so the tray is unobstructed.

3. Mount the Bike onto the Tray

• With a loading ramp: Hook the ramp to the tray end and roll the e-bike up steadily using the handlebars and saddle for balance.
• Manual lift (two-step technique): Squeeze the rear brake to pop the front wheel up, set the front tire into its tray cradle first, then lift the lighter rear end into place. Avoid lifting the entire bike off the ground at once.

4. Clamp the Frame or Tires

Engage the rack's ratcheting hook or clamp arm securely.

• Front tire: Press the hook firmly against the rubber just in front of the fork/brake assembly.
• Frame: Ensure the arm does not crush external wiring harnesses or hydraulic brake lines.

5. Fasten Wheel Straps and Test Stability

Thread and ratchet the wheel straps snugly through both rims. Ensure the straps do not pull directly against valve stems or spokes.

Give the bike a firm shake by the seatpost and handlebars to verify zero play or wobble before driving.

How To Put Ebike On Bike Rack

Loading an electric bike onto a bike rack requires extra care due to the added weight of the motor, battery, and reinforced frame.

1. Verify Weight Limits and Receiver Ratings

Exceeding tongue or rack capacity risks catastrophic failure.

Check that your rack is rated for your e-bike's weight (most platform racks support 60–80 lbs per tray). Ensure your vehicle's hitch class can support the combined weight of the rack and all mounted bikes.

2. Remove the Battery and Loose Accessories

Reduces bike weight by 7–12 lbs for easier lifting.

Take off the battery, water bottles, bags, and detachable displays. Store the battery inside your vehicle to protect it from road vibration, weather, and theft while making the bike lighter to lift.

3. Position the Heaviest Bike Closest to the Vehicle

Crucial for hitch leverage and driving stability.

If carrying multiple bikes, load the heaviest e-bike in the tray closest to your vehicle bumper. If your rack includes a loading ramp, attach it to the outer edge of the tray and roll the bike up.

4. Engage Wheel Trays and Top Hooks

Do not clamp directly onto carbon fiber or sensitive wiring.

Set the wheels firmly into the wheel cradles. Lower the ratcheting arm or frame clamp snugly over the front tire (or frame top tube). Ensure clamp hooks do not pinch brake lines or internal routing cables.

5. Fasten All Secondary Wheel and Safety Straps

Prevents wheel hop over bumps and potholes.

Thread the ratchet straps through the front and rear wheels, tightening them firmly against the cradles. If your tires are fat tires (3.0" to 4.0"+), ensure you are using extended fat-tire straps.

6. Conduct the Final Shake Test and Lock

Perform before every trip and at rest stops.

Grab the bike by the frame and shake it firmly; the bike and rack should move together with the vehicle chassis rather than wobble independently. Engage the integrated hitch lock and cable/arm locks.

Can a standard bike rack hold the weight of an e-bike?

Most standard bike racks cannot safely hold an e-bike.

Standard bike racks—especially trunk-mounted, roof-mounted, or standard hanging hitch racks—are typically rated for 30 to 35 lbs (14–16 kg) per bike. In contrast, most e-bikes weigh between 45 and 80 lbs (20–36 kg) due to their motors, reinforced frames, and battery packs.

Key Risks of Using a Standard Rack

• Structural Failure: Exceeding the rack's maximum load rating can snap support arms, warp metal trays, or shear mounting bolts.
• Vehicle Damage: Overloaded trunk-mounted racks can dent tailgates, bend trunk lids, or crack rear glass under dynamic loads, such as hitting bumps or highway dips.
• Frame & Component Damage: Hanging racks concentrate heavy weight onto thin contact points on top tubes and can crush internal wiring or brake lines.

Safe Transport Solutions

• Use a Platform-Style Hitch Rack: Choose a rack specifically rated for 60+ lbs per tray, such as models from Thule, Kuat, Yakima, or 1Up, using a 2-inch hitch receiver (Class 3 or higher).
• Remove the Battery: Taking off the battery pack during transport reduces the bike's total weight by 6 to 10 lbs, reducing strain on the rack and making the bike easier to lift.
• Check Tongue Weight Limits: Ensure your vehicle's hitch receiver and vehicle chassis can support the combined tongue weight: rack weight + bike weight.

Do I Need to Remove the E-Bike Battery Before Loading It onto the Rack?

Yes, you should remove the battery before loading your e-bike onto a rack. While not legally mandatory in most places, it is universally recommended by both e-bike and bike rack manufacturers.

Why You Should Remove the Battery

• Weight Reduction: E-bike batteries typically weigh between 6 to 10 lbs (2.7 to 4.5 kg). Removing the battery significantly lowers the total load on the rack, your vehicle's hitch, and your back when lifting the bike.
• Rack & Vehicle Safety: Reducing weight helps ensure you stay well within the rack's per-bike weight limit and tongue-weight capacity, minimizing sway, bouncing, and structural stress at highway speeds.
• Weather & Debris Protection: Exposing the battery to highway-speed rain, wind, gravel, and direct sun during transport increases the risk of water intrusion and impact damage.
• Temperature Control: Keeping the lithium-ion battery inside the climate-controlled cabin of your car protects it from extreme heat or freezing temperatures that degrade battery life and capacity.
• Theft Deterrence: A rack-mounted e-bike without a battery is far less attractive to opportunistic thieves during stops.

Transport Best Practices

• Cover the terminals: Use a neoprene terminal cover or wrap the exposed battery dock in plastic/waterproof tape to keep out rain, dust, and road grime.
• Cabin storage: Transport the removed battery inside your vehicle, ideally in a padded bag away from direct sunlight.
• Check the rack rating: Always verify that the weight of the bike without the battery is still below the rated capacity of your specific rack model.

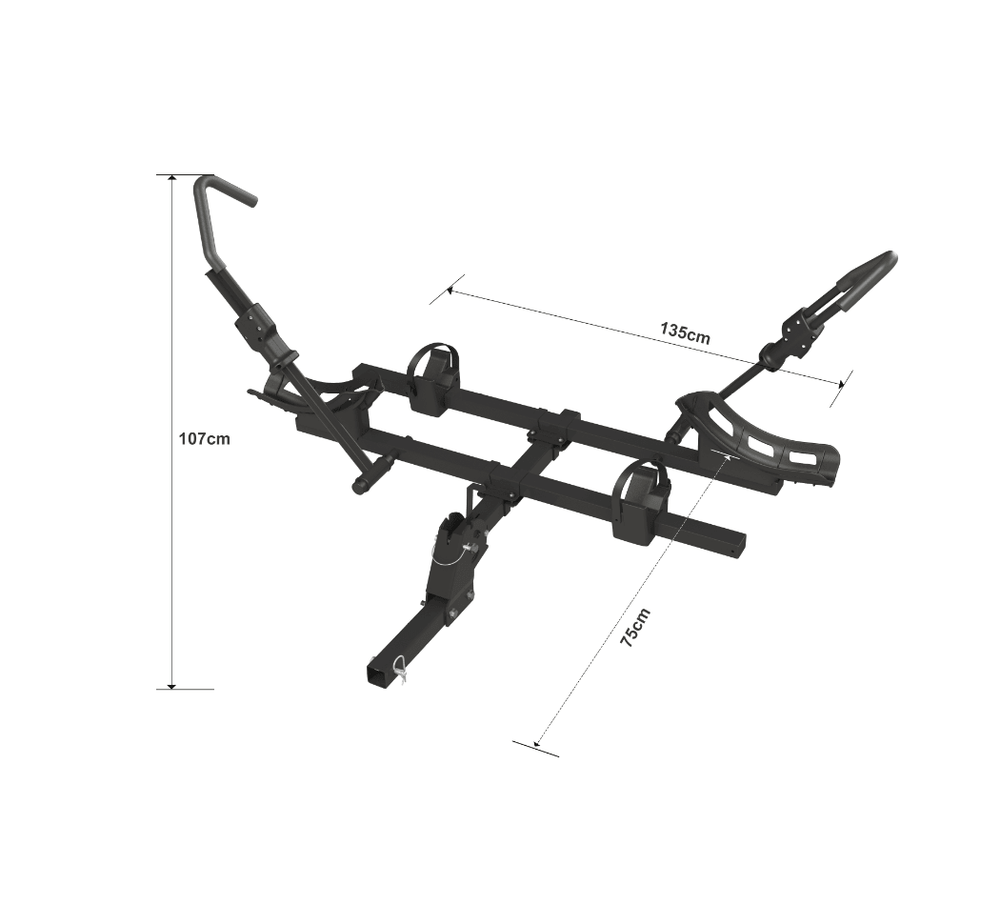

Himiway Hitch Rack

An excellent complement to any e-bike is the Himiway E-bike Hitch Rack which is compatible with the Himiway Cruiser, Escape, and Step-Thru. This hitch carrier holds two Himiway Cruisers or one Himiway Escape (because the Escape is a bit heavier). One of the best features of this bike rack is the ability to fold up and down into three different positions to get it out of your way when not in use or allow access to your vehicle without taking the rack off. This compact feature also makes it easy to store in a garage, shed, or basement when not in use.

A best practice is to remove the e-bike batteries before loading the bikes into the rack. You will not want your batteries moving around and weighing down the rack as you drive down the road. This specific rack fits 2-inch receivers only so be sure to re-read Step 2 above and determine the proper receiver you’ll need (which should be a Class 3 or Class 4 receiver). The Himiway E-bike Hitch Rack weighs about 45 pounds and can be moved by one person. If you are older or concerned about an injury from lifting, you can also use a second person to move the rack.

How Do I Find Out the Tongue Weight Capacity of My Car?

Vehicle Owner's Manual

Look under sections labeled Towing, Towing Capacity, or Technical Specifications. The manual typically lists both maximum gross trailer weight and maximum tongue load (sometimes called vertical tongue weight or hitch weight).

Trailer Hitch Label

Inspect the physical hitch installed on your car. There is usually a metal safety certification sticker or stamped plate directly on the hitch frame stating:

• Max Gross Trailer Weight (GTW)
• Max Tongue Weight (TW) or Vertical Load (V)

Standard 10%–15% Rule of Thumb

If your vehicle has an official towing capacity rating but tongue weight is not explicitly stated, standard tongue weight is generally 10% to 15% of the vehicle's maximum gross trailer weight rating.

Example: If your vehicle is rated to tow a maximum of 3,500 lbs, the recommended tongue weight capacity is between 350 lbs and 525 lbs.

Driver's Door Jamb Sticker & Payload Limits

Tongue weight counts directly against your vehicle's total Payload Capacity (found on the Tire and Loading Information placard on the driver's door jamb). Ensure the tongue weight combined with the weight of all passengers and cargo inside the car does not exceed this total payload rating.

The Weakest Link Rule

Your actual safe tongue weight capacity is always limited by the lowest-rated component among:

• The vehicle manufacturer's rating
• The aftermarket hitch receiver rating
• The ball mount / hitch ball rating

What Are the Best Ways to Lock and Secure an E-Bike to a Hitch Rack?

Securing an e-bike to a hitch rack requires a layered approach: locking the rack to the vehicle, locking the bike to the vehicle frame, and stripping high-value components.

1. Secure the Hitch Rack to the Vehicle

• Locking Hitch Pin: Replace standard hitch pins with a hardened steel, keyed locking hitch pin (e.g., 5/8-inch pin for Class III/IV receivers).
• Anti-Rattle Clamp with Lock: Eliminates rack wobble and adds a secondary physical barrier preventing the rack from sliding out if the main pin is attacked.

2. Lock the Bike Frame Directly to the Vehicle Receiver

• Heavy-Duty Chain Lock (12mm–16mm): Run a high-security cinch chain (such as Kryptonite New York Noose or Pewag chain) from the vehicle's safety chain loops directly through the main triangle of the e-bike frame.
• Bypass Built-In Rack Cables: Built-in rack cables provide basic visual deterrence against quick grab-and-go theft at stoplights, but bolt cutters defeat them in seconds. Always anchor the primary frame directly to the hitch structure.
• Angle Grinder-Resistant D-Locks: For shorter stops, a high-resistance U-lock (like a Hiplok D1000 or Litelok X1) clamped between the rack mast and the bike frame offers maximum cutting resistance.

3. Strip and Protect Valuables

• Remove the Battery: Store the battery inside your locked car. This eliminates the bike's single most valuable component, protects the battery from road spray/heat, and cuts 8–15 lbs off the rack's load capacity per bike.
• Remove Detachable Displays and Bags: Take quick-release screens, bike computers, panniers, and headlights into the cabin.

4. Transit Fastening & Redundancy

• Secondary Tie-Down Straps: Use heavy-duty cam buckle or ratchet straps through both wheels and around the frame to prevent bouncing or rack clamp failure at highway speeds.
• Motion Alarm or GPS Tracker: Hide an Apple AirTag / SmartTag or arm a vibration-sensitive disc brake alarm ($15–$25) to trigger an audible 110 dB siren if someone tampers with the bike at a rest stop.
