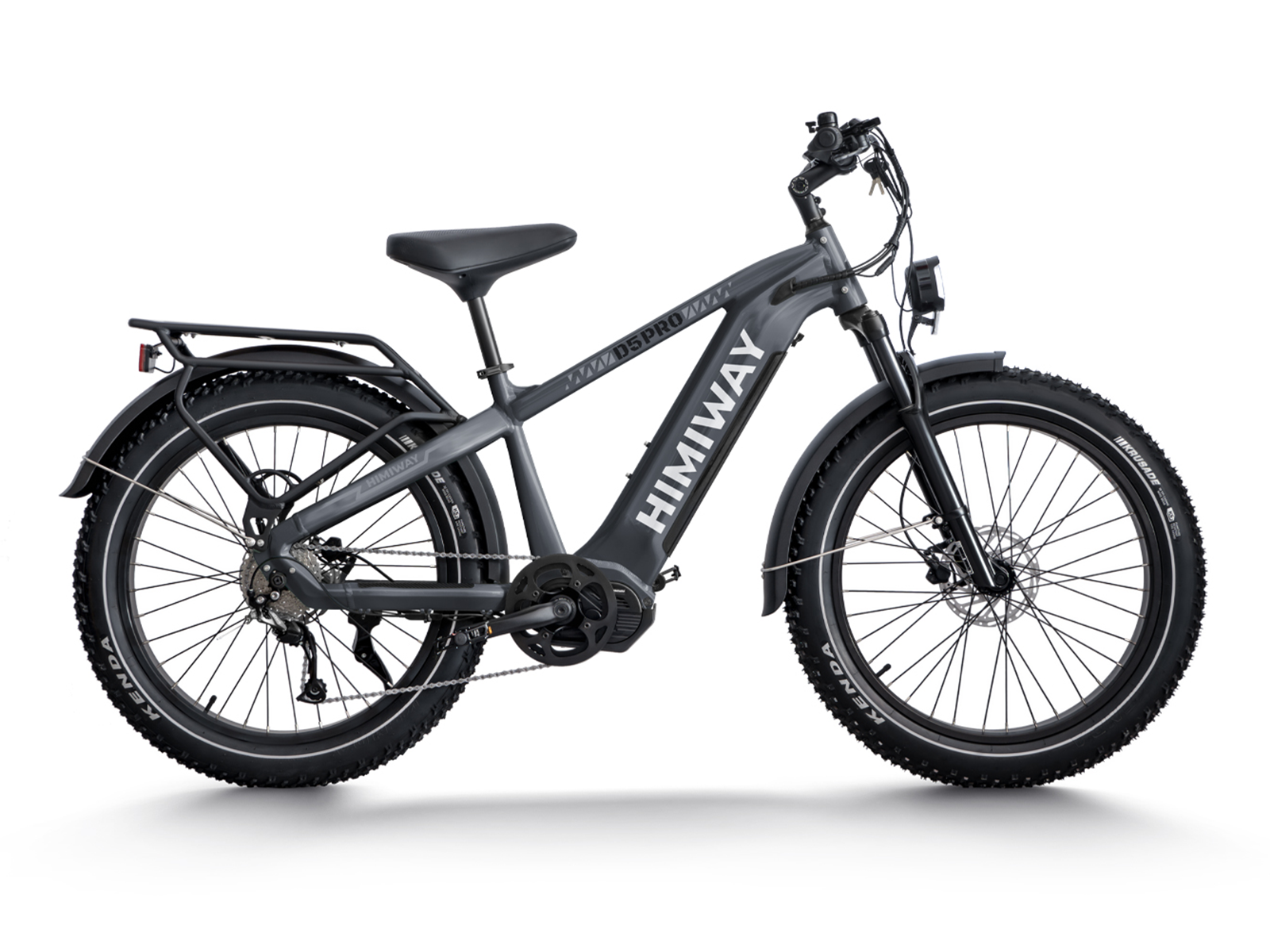

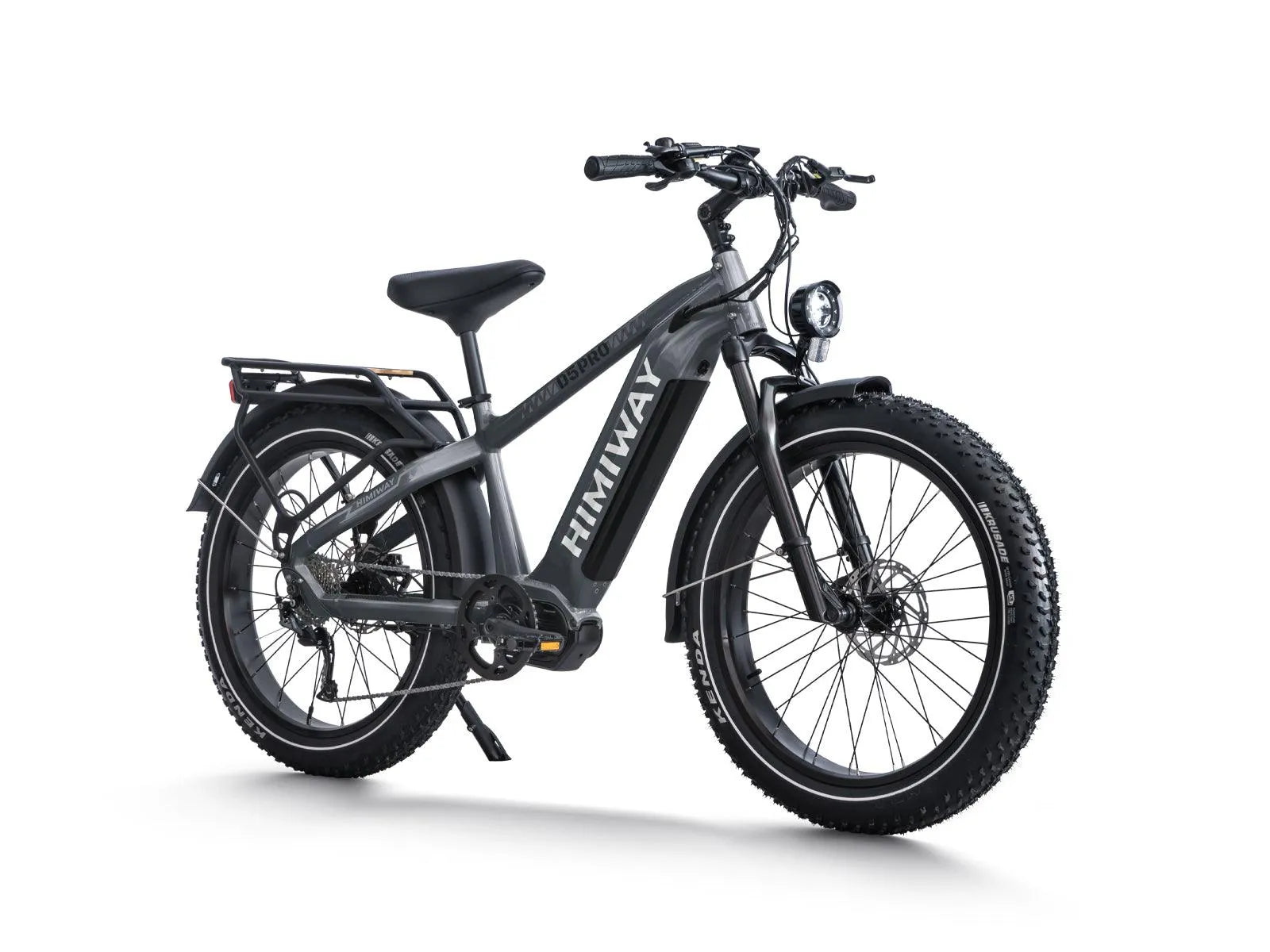

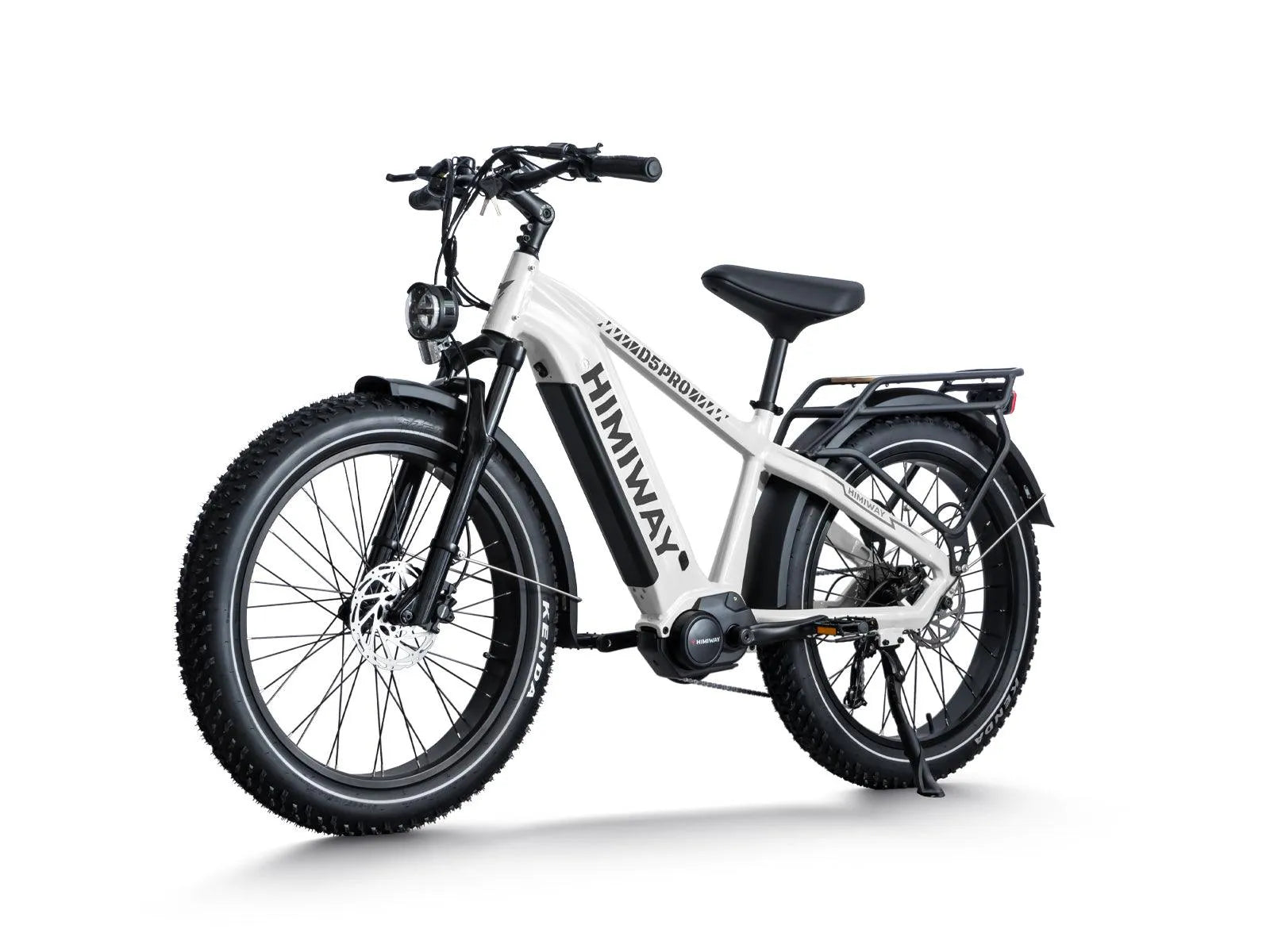

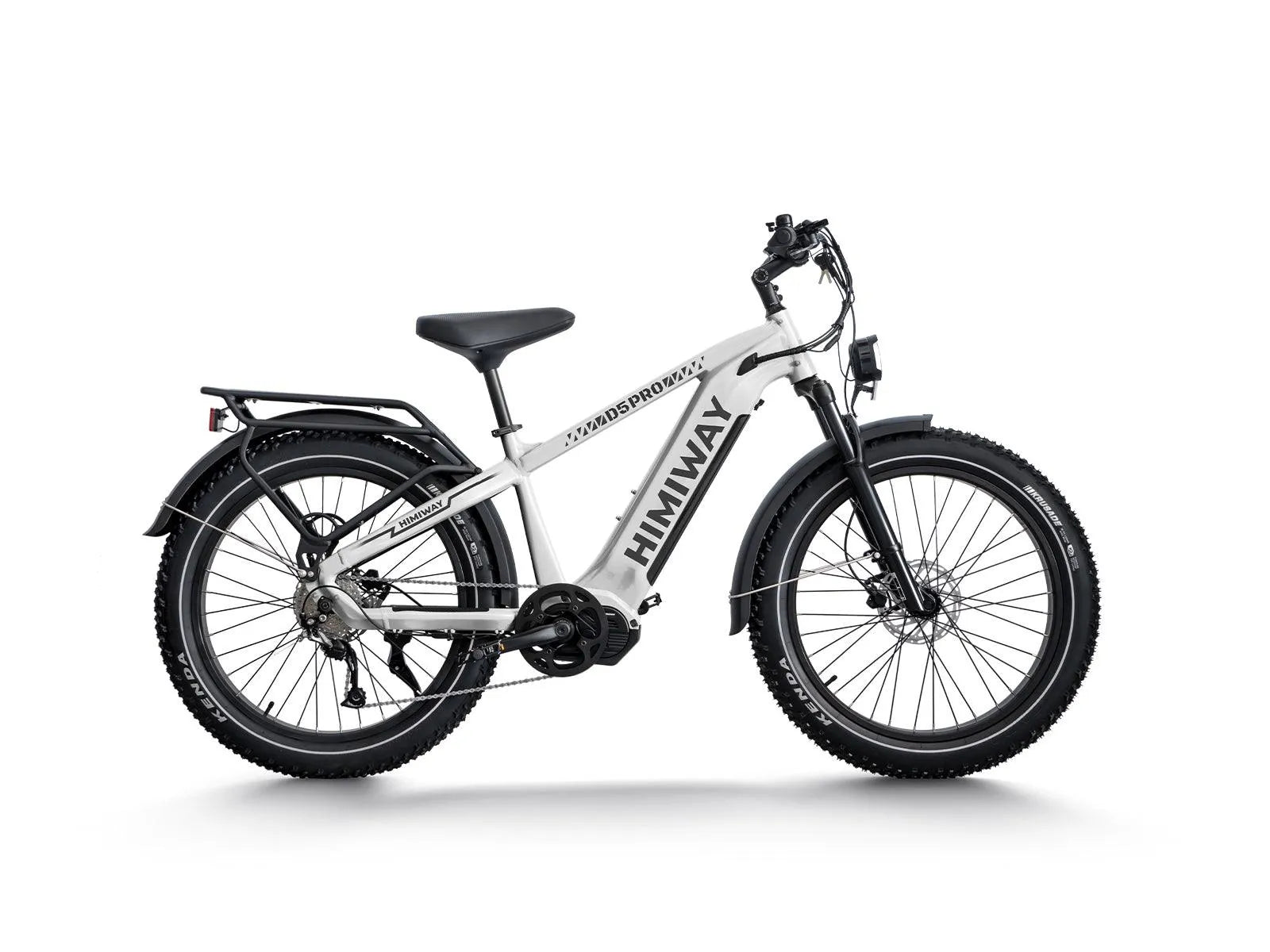

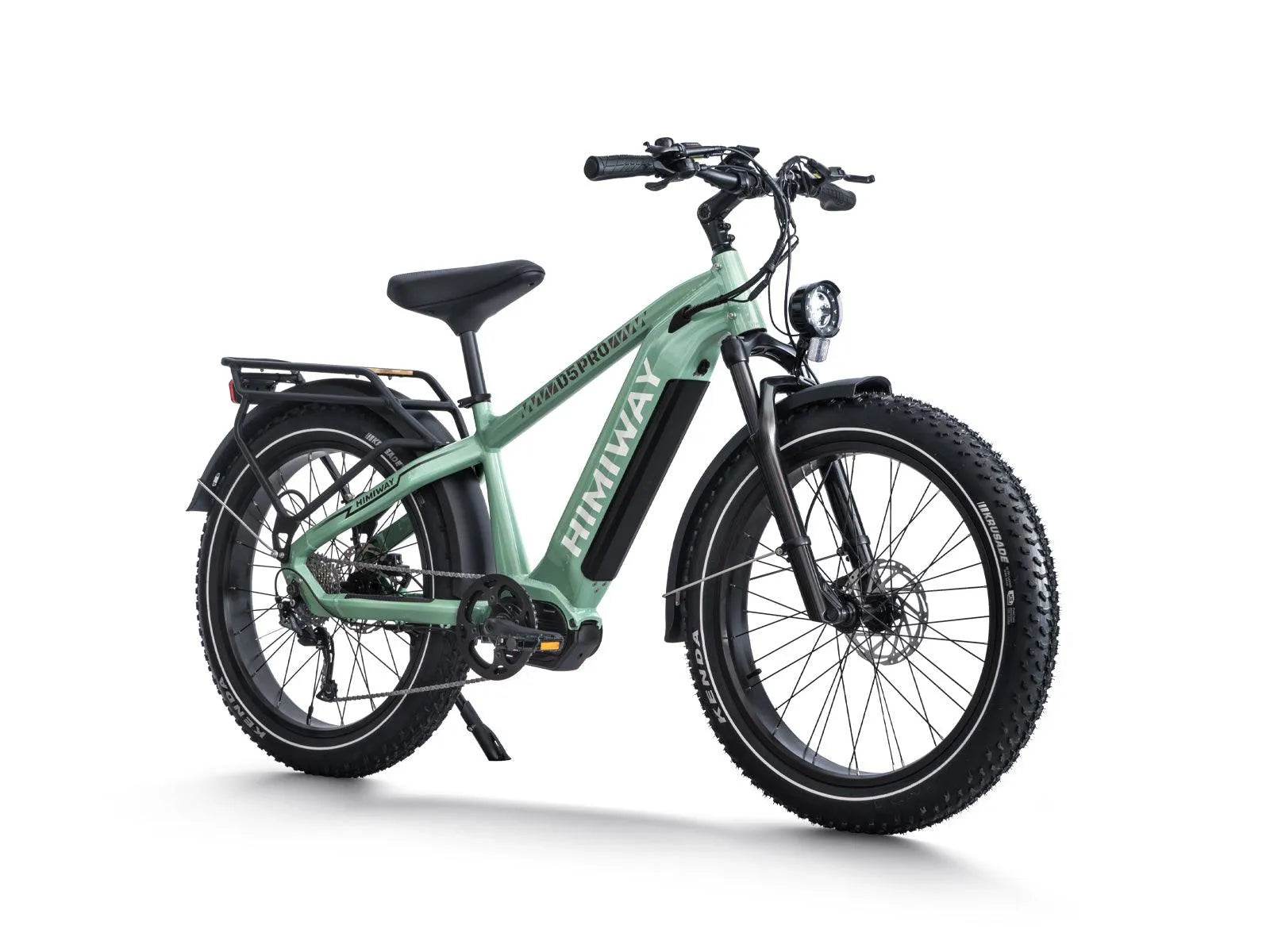

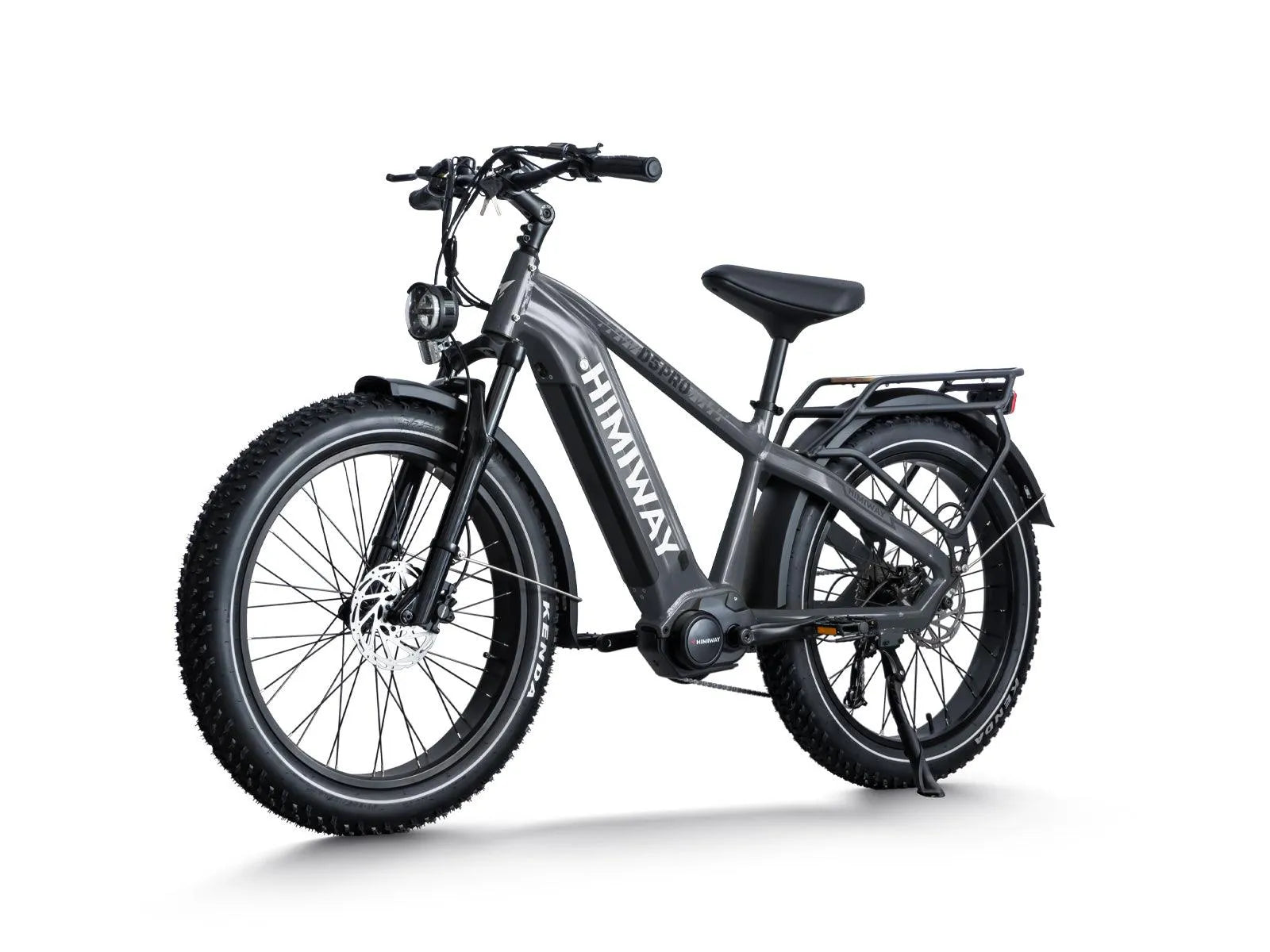

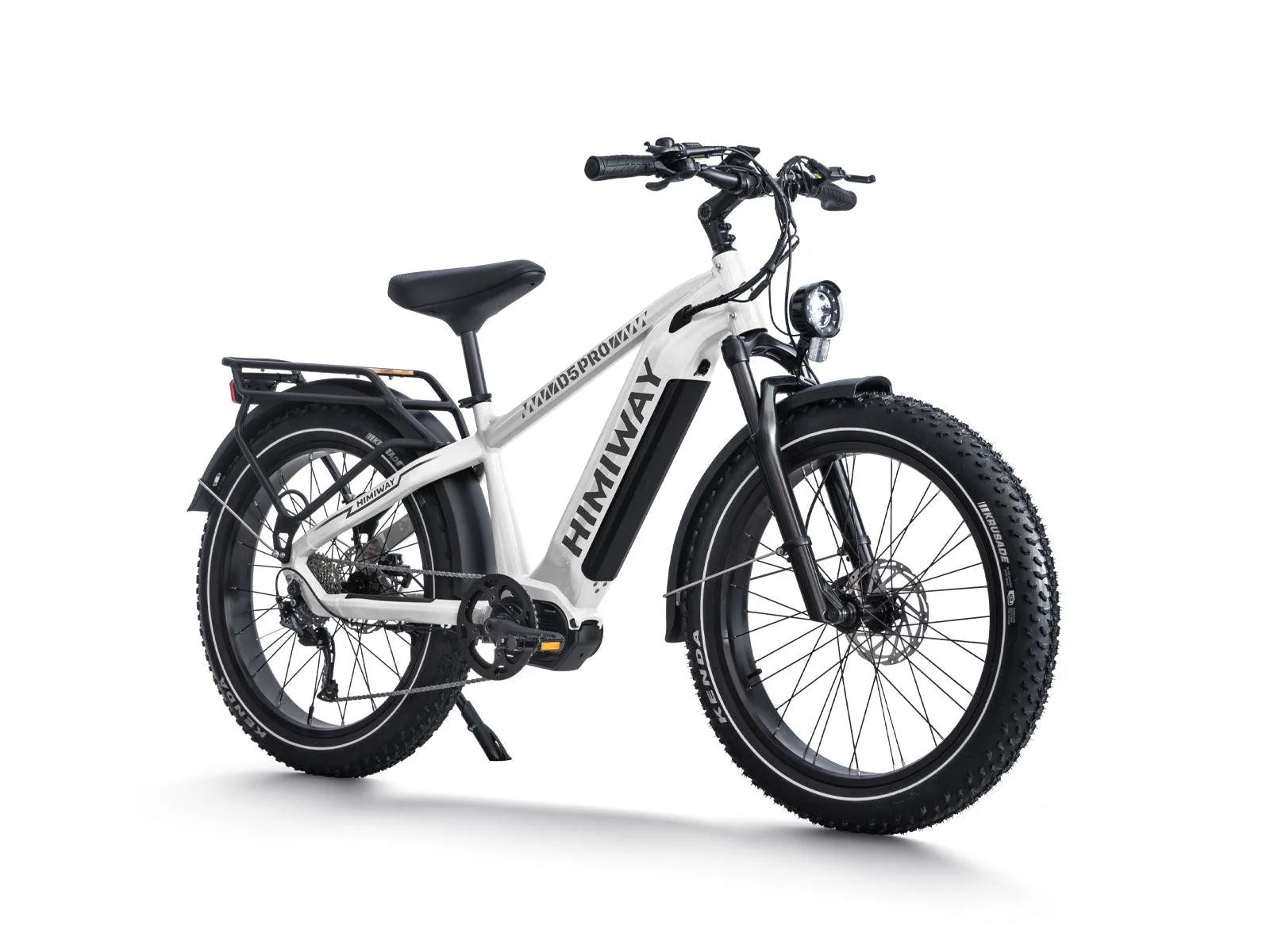

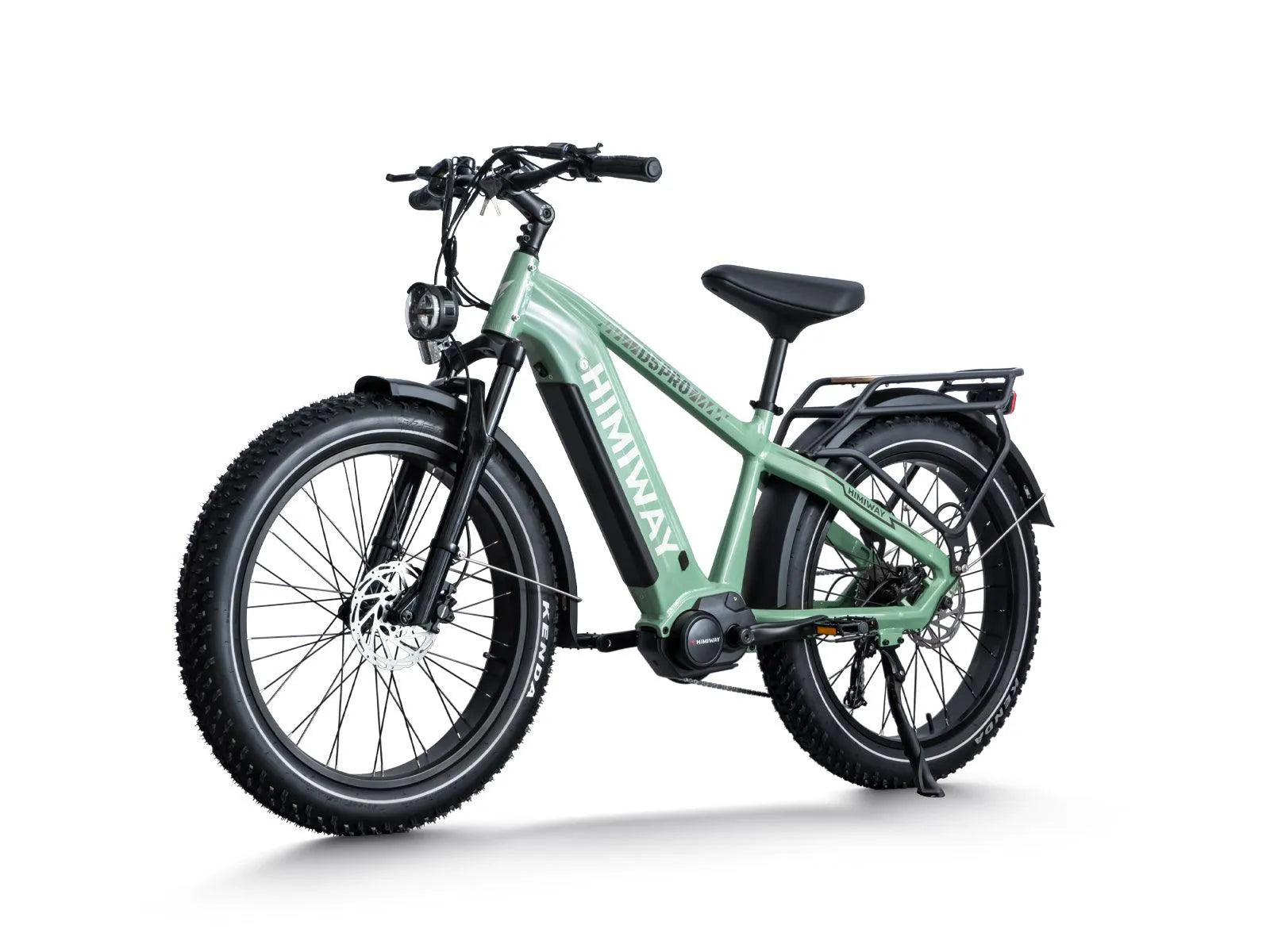

D5 Pro / Premium All-terrain Electric Fat Bike
D5 Pro
High-Step-
Shipping:Within 2 Business Day

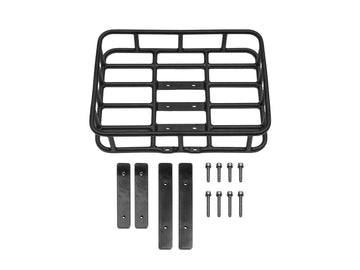

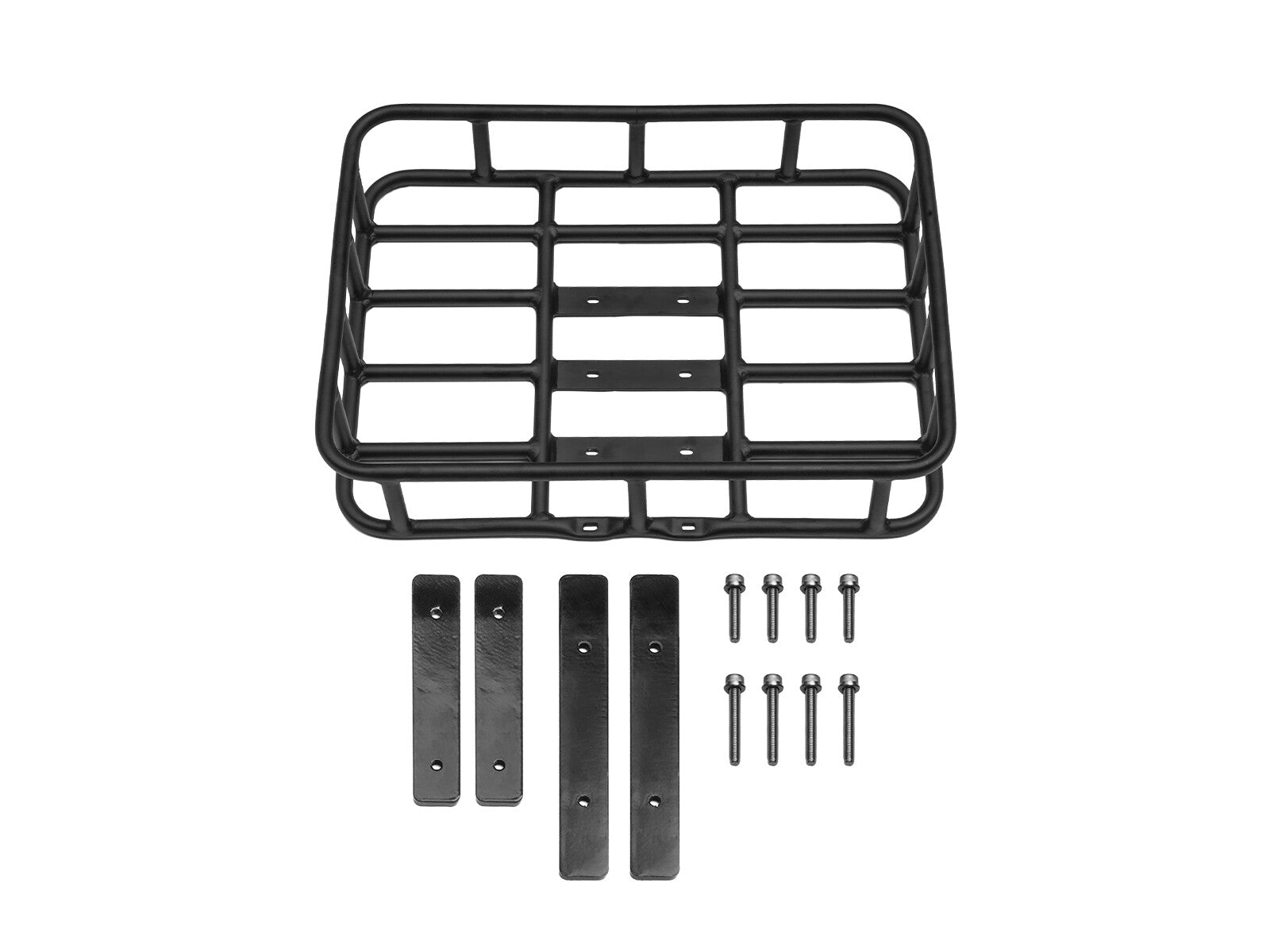

Compatible Accessories
Free accessories and bike not included.
Your discount will be added during checkout.
-
960 Wh
Samsung/LG Battery
-
80 Miles
Max Range The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
500 W
Mid-Drive Motor
-
20+ Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
400 lb.
Max Playload
-
26*4.0 "
Fat Tire
-
9 Speed
Shimano Derailleur
-
Hydraulic
Brakes
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - Reach speeds of up to 20 mph, No pedaling required.
Recommended for you
D5(Zebra) / Premium All-ter...
D3(Cruiser) / Long Range Fa...
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5 PRO
Customized Integrated Brake Light
Selle Royal Saddle
48V 500LM Luminosity Spotlight
Shimano 9 Speed Gear Shift System
Thumb Throttle
Hydraulic Brakes

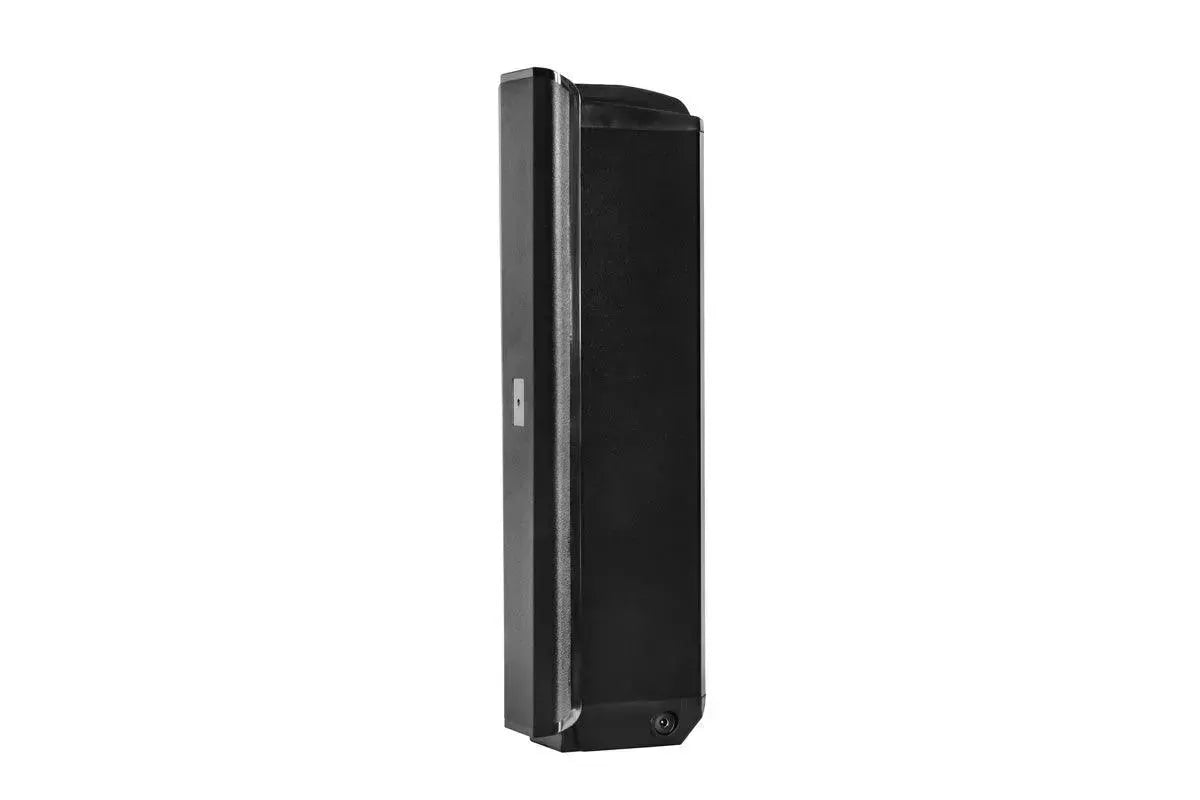

960Wh Samsung/LG Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.
500W Torque-Sensing Mid-Motor
The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.
-
500 W
Mid-Drive Motor
-
130 Nm
Torque
The D5 Pro torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.
400 lb. Payload With 2X Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
The Kenda All-terrain Fat Tire
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
-
Grasses
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Technical Specifications
Geometry
-
A – total length78.7
-
B – handlebar height47
-
C – handlebar length28
-
D – wheelbase49.2
-
E – wheel diameter28.7
-
F – minimum seat height20.9
-
G – maximum seat height31.4
-
H – chain stay length19
-
I – frame stack24.6
-
J – frame reach17.8
-
K – effective top tube length24.4
-
L – head tube length5.5
-
M – head angle65°
-
N – standover heightST 22.4/ SO 31.1
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor500W mid-drive motor
-
DisplayKD718-P LCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel 170mm / Chain ring: 44T BCD104
-
FreewheelShimano CS-HG201-9 11-36T
-
ChainKMC E9 EPT 124L
-
GroupsetShimano altus M2000 9 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Front brakeTektro HD-E3520 hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemZoom TDS-C269-8FOV 31.8*90mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′3″ ~ 6′5″
-
Weight79 lb. (with battery)
-
Max. payload capacity400 lb.
*Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components.
