400 lb.
Max Playload
-
Hydraulic
Brakes
-
Extended
Rear Rack
-
960 Wh
Samsung/LG Battery
-
80 Miles
Max Range The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
750W
-
20+ Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
7-Speed
Shimano Altus M310
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - Reach speeds of up to 20 mph, No pedaling required.
Recommended for you
D5(Zebra) / Premium All-ter...
D3(Cruiser) / Long Range Fa...
Rider Reviews
Gain Extra Payload With 2X Thicker Frame
The Himiway Big Dog boasts a unique cargo frame design that ensures the durability of the rear rack and the stability of the cargo. The sturdy frame, which is twice the thickness of regular ebike frames, combined with the low-center-of-gravity moped design, provides the most comfortable riding experience even while carrying heavy loads.
-
400 lbs
Payload -
2X Thicker
Aerospace Grade Aluminum Frame
750W Brushless Geared Hub Motor
The Big Dog motor uses an updated 750W Brushless Geared Hub Motor and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnets’ attenuation speed, which guarantees longer life expectancy for the motor.
-
750W
Motor Power -
86Nm
Max Motor Torque
960Wh Samsung/LG Lithium-ion Battery
The Big Dog combines the new 48V 20Ah Samsung/LG Lithium-ion Battery to ensure a long life expectancy and distinguished performance. The single range can be up to 80+ miles per charge on pedal-assist mode and around 60 miles on pure electric power mode.
-
60-80 Miles
Pre Charge -
Removable Battery
Built-in design
Extended Rear Rack
The sturdy aluminum rear rack can support loads of up to 120 pounds. You can take a ride with your loved ones, transport your children from school, or transfer some heavy equipment. With Himiway Big Dog, the possibilities are boundless.
Multifunctional LCD Display
Backlit display provides the information of speed, mileage, power, etc.
- USB Charging
- State of Riding
- Fault Warning
- Cycling Data
Zoom in on New Features
All these upgraded components are designed to give a comfortable, smooth and safe riding experience on city roads.
Double-Leg kickstand
The double-leg kickstand offers increased balance when your bike is parked, allowing for more weight to rest on your bicycle without it tipping it over. Moreover, the double-leg design will be more efficient when repairing or replacing components.
180MM Hydraulic Disc Brakes
Both the front and rear 180mm Hydraulic disc brakes provide ample stopping power even in the harshest conditions.
20"X4" Kenda Fat Tires
The Kenda fat tires provide upgraded grip and superior shock absorption ability. Even in the most challenging terrain and weather conditions, these tires guarantee your safety, offering you an easy and smooth riding experience.
Shimano 7 Speed Gear Shift System
The Shimano 7 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.
Selle Royal Saddle
The Selle Royal Saddle features a comfortable design specially made for pressure relief.

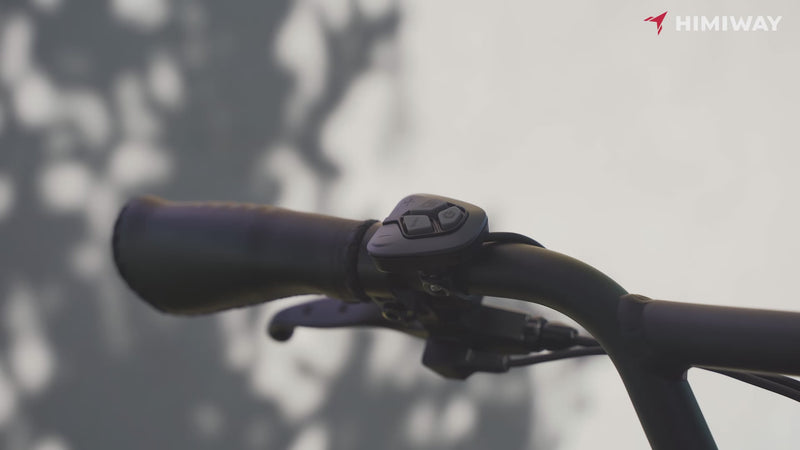

Half Twist Throttle
The Half-twist throttle helps prevent accidental activation, protecting you from inadvertent injuries.
Front Fork:Coil Suspension
The durable Himiway suspension fork has preloaded adjustments for the spring’s stiffness and a lock-out lever. With 80mm of available compression, it will be the perfect fit for your chosen terrain.
Technical Specifications
Geometry
-
A – total length71
-
B – handlebar height43.5
-
C – handlebar length28
-
D – wheelbase46.9
-
E – wheel diameter23
-
F – minimum seat height21.5
-
G – maximum seat height31
-
H – chain stay length17.5
-
I – frame stack23
-
J – frame reach19.3
-
K – effective top tube length26.4
-
L – head tube length8.3
-
M – head angle71°
-
N – standover height18.5
specifications
-
Frame6061 Aluminum frame
-
HeadsetNeco A16M 44*44*30
-
ForkAlloy fork 135mm@28.6*25.4*270mm lockout & preload adjustable
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelAluminum integrated wheel
-
Rear wheelAluminum integrated wheel
-
TiresKenda K1188 Krusade 20x4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charging
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: IXF-212FA forged alloy 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3-EPT 114L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemMA-5040 28.6*31.8mm
-
HandlebarYC-B086 22.2*31.8*720mm
-
SeatpostJY-SP311 34*350mm
-
SaddleSelle royal A054UE
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'1" ~ 6'5"
-
Weight88.6 lb. (with battery)
-
Max. payload capacity400 lb.
*Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components.
