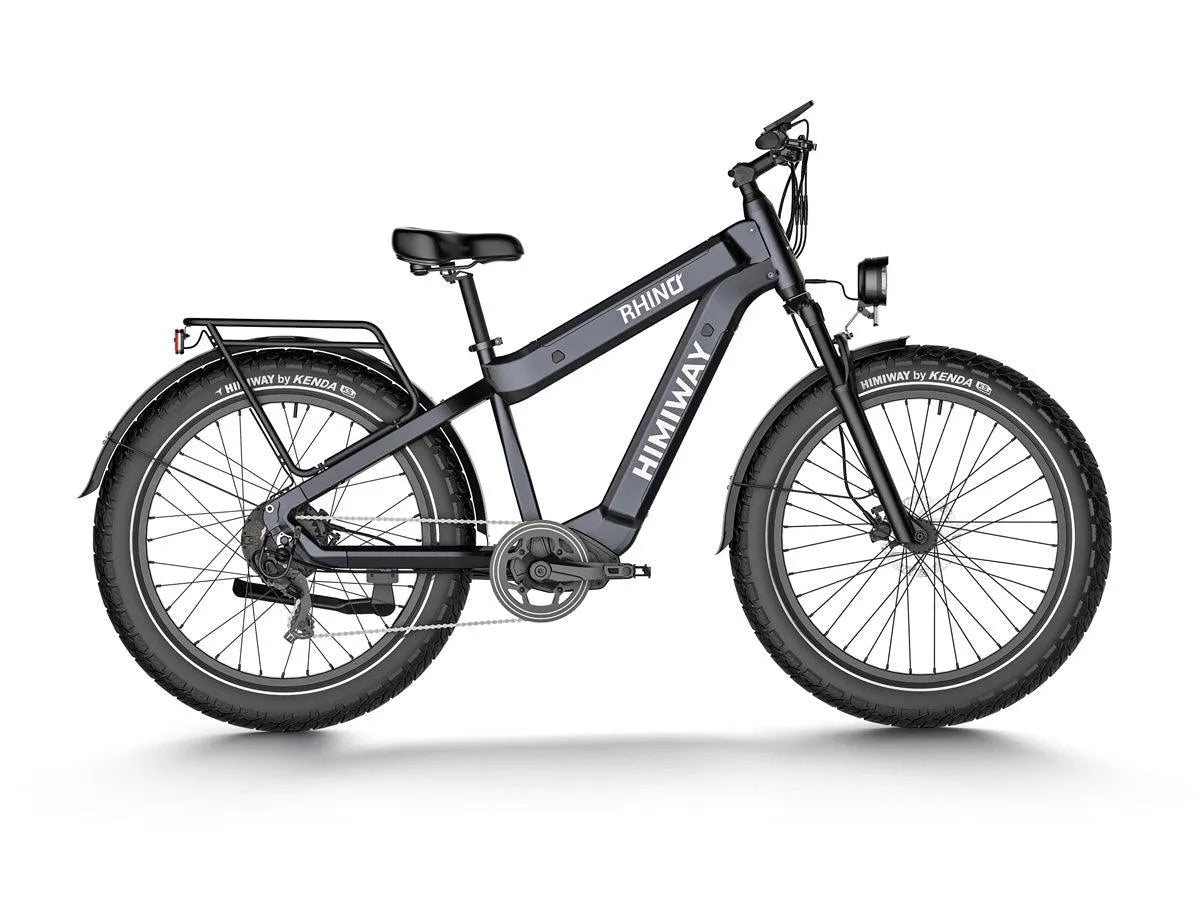

Himiway D5 Plus (Rhino) | Dual Battery Off-road Electric Bike

off road electric bike with huge battery capacity

dual battery off-road mid-drive d electric bike

2-Year Warranty

15-Day Return

Free Shipping

1000+ Local Shops

Safety Certified

160K+ Riders

Himiway D5 Plus (Rhino) | Dual Battery Off-road Electric Bike

Name: Himiway D5 Plus (Rhino) | Dual Battery Off-road Electric Bike
Brand: Himiway Bike
SKU: H-RHINO-REAR-GN
Price: 2999.0 USD
Availability: InStock

5.0 (3Reviews)

$2,999.00

$2,999.00 ~~$3,199.00~~

Style: D5 Plus(Hub Motor)

D5 Plus(Hub Motor)

D5 Ultra(Mid-drive Motor)

Color: Midnight Forest

Availability: In Stock
Shipping:Within 2 Business Days

Quantity

2-Year Warranty

15-Day Return

Free Shipping

1000+ Local Shops

Safety Certified

160K+ Riders

Geometry

Recommended Height: 5'3" ~ 6'4"

A – total length

78.7
B – handlebar height

43.8
C – handlebar length

27.6
D – wheelbase

48.9
E – wheel diameter

29.8
F – minimum seat height

34.2
G – maximum seat height

42.1
H – chain stay length

18.7
K – effective top tube length

21.9
L – head tube length

7.9
N – standover height

32.3

Specification

Frame

6061 Aluminum frame
Headset

Neco H148 28.6"44*44*30mm
Fork

TRAMA FAT34-PLS 26 Air Spring 100mm travel 15*150mm thru axle ^{D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle}
Shock

Alloy front suspension fork with lockout and adjustment
Front wheel

Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：M104F-150 12G*150
Rear wheel

Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：MB019R-190F-GM14
Tires

Kenda X Himiway K1277 26*4.5
Battery

48V 15Ah*2
Motor

1000W mid-drive motor ^{D5 Plus: 1000W brushless gear motor}
Display

LCD display with Type-c charger
Throttle

Thumb throttle
Sensors

Torque sensor丨shifting sensor | speed sensor丨brake sensor ^{D5 Plus: Torque sensor丨speed sensor丨brake sensor}
Crankset

Crank arm: Bafang 170mm | Chain ring: 44T ^{D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T}
Cassette

Shimano CS-HG500-10 11--34T ^{D5 Plus: Shimano CS-HG201-9 11-36T}
Chain

KMC E10S-EPT 124L ^{D5 Plus: KMC E9-S EPT 124L}
Groupset

Shiminao deore 10 speed
Front brake

Tektro HD-E350 hydraulic brake
Rear brake

Tektro HD-E350 hydraulic brake
Rotors

Tektro TR180-24 F:180mm R:180mm

Components

Stem

TDS-D704-8FOV/ISO-M 28.6*90*31.8
Handlebar

MTB-AL-312BT FOV/ISO-M/AL/BACK SWEEP:6° 31.8mm*22.2mm*700W
Seatpost

ALLOY 30.4*350mm
Saddle

Himwiay TTZ032X saddle
Pedal

Aluminum pedal
Lights

48V LED light
Kickstand

Heavy-duty aluminum kickstand

Others

Range

80-110 miles
Controller

48V/25A
Charger

US standard 3.0 A smart charger
Rider height

5'3" ~ 6'4"
Weight

97 lb. (with battery)
Max. payload capacity

400 lb.

1 - D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle
2 - D5 Plus: 1000W brushless gear motor
3 - D5 Plus: Torque sensor丨speed sensor丨brake sensor
4 - D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T
5 - D5 Plus: Shimano CS-HG201-9 11-36T
6 - D5 Plus: KMC E9-S EPT 124L

Overview Specs Reviews FAQs

100 Miles

Per Charge(maximum) ^{The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.}
1000 W

Geared Hub/Mid-drive Motor
Hydraulic

Brakes
Torque

Sensor ^{For D5 Ultra}
400 lb.

Payload Capacity
9/10-Speed

Shimano Derailleur
720Wh*2

Samsung/LG Battery
20+ Mph

Top Speed ^{Reach speeds of up to 20 mph, No pedaling required.}

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - For D5 Ultra
3 - Reach speeds of up to 20 mph, No pedaling required.

Recommended for You

HD Wide-angle Handlebar Rearv...

5.0 (1)

$49.00

Extra Soft Memory Foam Padded...

4.4 (10)

$59.00

1440Wh High-Performance Lithium-ion Battery

If range anxiety is of concern to you, D5 Plus (Rhino) will get you covered with its 1440wh battery capacity. Battery density has increased by 21% from 18,650 to 21,700 cells, allowing you to ride up to 100 miles for a single charge. And worried about long charging times? It takes only 5 hours to get fully charged.

100 Miles

Per Charge(maximum) ^{The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.}
8.8 lb.*2

Battery Weight

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.

Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.

Short Circuit Prevention
Over-load Prevention
Reverse Prevention
Wiring Protection
Over-current Prevention
Over-charging Over-discharging
Cell Balancing
Temperature Control

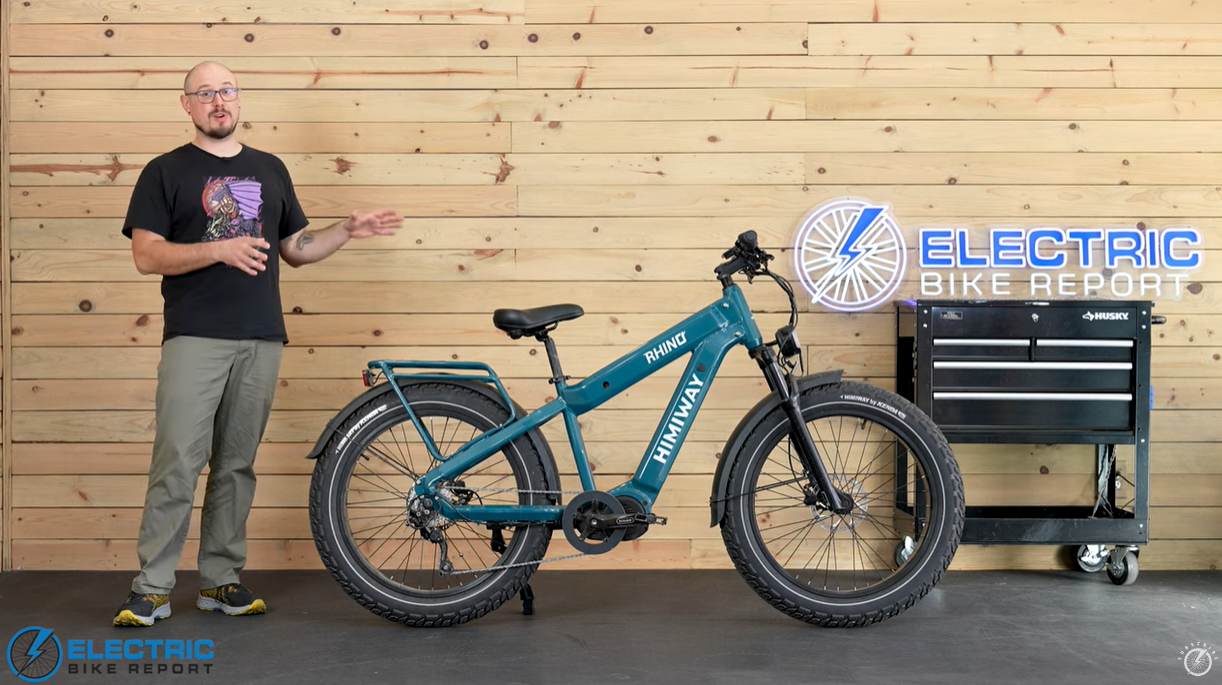

"The Rhino’s range capabilities stood out from many of its other test results as a highlight. With a demonstrated ability to cover 100+ miles on a single charge of its dual batteries..."

--electricbikereport

"The Rhino has fenders, a rear rack, a taillight with brake activation, and an automatic headlight. This bike can support up to 400lb."

--bikeride

1000W Brushless Geared Hub Motor

The Mid-drive motor with 160 Nm torques provides an immense amount of power when climbing hills and riding off-road. Coupled with torque sensors, power will be released precisely based on your pedal effort, ensuring your smooth riding experience.

1000 W

Geared Mid-Drive Motor
160 Nm

Torque

The 1000W geared hub motor provides faster acceleration, stronger power, and better heat dissipation, making easier to conquer even the most rugged terrain.

1000 W

Geared Hub Motor
90 Nm

Torque

Clean at a glance

Experience Natural Handling and Comfortable Human-vehicle Interaction

The D5 Ultra(Rhino Pro) display is tailor-made for outdoor enthusiasts. With its black background and green and white text, it ensures that all figures will be visible even in the worst and darkest outdoor environments.When combined with the mid-drive motor, you can expect stronger power output but a better level of control from this beast.

USB Charging
Security Code
State of Riding
Fault Warning
Cycling Data
Function Set

The new LCD display is made of solid motherboard and is designed with waterproof and wear-resistant features, enabling it to work functionally under challenging conditions. This smart display can record various riding data and has been upgraded with some new features like automatic headlights.

USB Charging
Security Code
State of Riding
Fault Warning
Cycling Data
Function Set

Shimano 9/10 Speed Gear Shift System

The Shimano 9/10 speed gear shift system offers you more choice while riding in a variety of conditions. Using this system accurately can increase the range of a single charge by up to 15%.

180MM Hydraulic Brakes

Hydraulic brakes provide superior braking performance and durability. With proper maintenance, the braking power won't decline for the next 5 years.

Customized Integrated Brake Light

The brake light with new Himiway logo will be activated automatic whenever you use the brake, which can prevent rear-end collisions while riding at night.

48V 500LM Luminosity Spotlight

The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.

Rear Rack

The brand new rear rack is fully made of aluminum and has undergone heat treatment. compared with the wooden rear rack, it is more solid and durable, and has better moisture resistance.

Thumb Throttle

The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Rhino/Rhino pro.

Selle Royal Saddle

The Selle Royal Saddle features a comfortable and ergonomic design specially made for pressure relief. Enjoy healthy & happy long-distance riding!
