Torque
Sensor
-
80 Miles
Max Range The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
400 lb.
Max Playload
-
Hydraulic
Brakes
-
960 Wh
Samsung/LG Battery
-
750W
Motor
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
D5 ST(Zebra ST) / Premium All-terrain Electric Fat Bike
When the discount conditions are met, the discount amount will be deducted automatically during checkout.

-
Shipping:June
Compatible Accessories
Free accessories and bike not included.
Your discount will be added during checkout.






Product Descriptions
Technical Specifications
Geometry
-
A – total length78.7
-
B – handlebar height47
-
C – handlebar length28
-
D – wheelbase49.2
-
E – wheel diameter28.7
-
F – minimum seat height20.9
-
G – maximum seat height31.4
-
H – chain stay length19
-
I – frame stack24.6
-
J – frame reach17.8
-
K – effective top tube length24.4
-
L – head tube length5.5
-
M – head angle65°
-
N – standover heightST 22.4/ SO 31.1
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor750W Hub motor
-
DisplayKD718-P LCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel 170mm / Chain ring: 44T BCD104
-
FreewheelShimano CS-HG201-9 11-36T
-
ChainKMC E9 EPT 124L
-
GroupsetShimano altus M2000 9 speed
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemZoom TDS-C269-8FOV 31.8*90mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'1" ~ 6'5"
-
Weight79 lb. (with battery)
-
Max. payload capacity400 lb.
-
Torque
Sensor
-
80 Miles
Max Range The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
400 lb.
Max Playload
-
Hydraulic
Brakes
-
960 Wh
Samsung/LG Battery
-
750W
Motor
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
D5 Rider Reviews

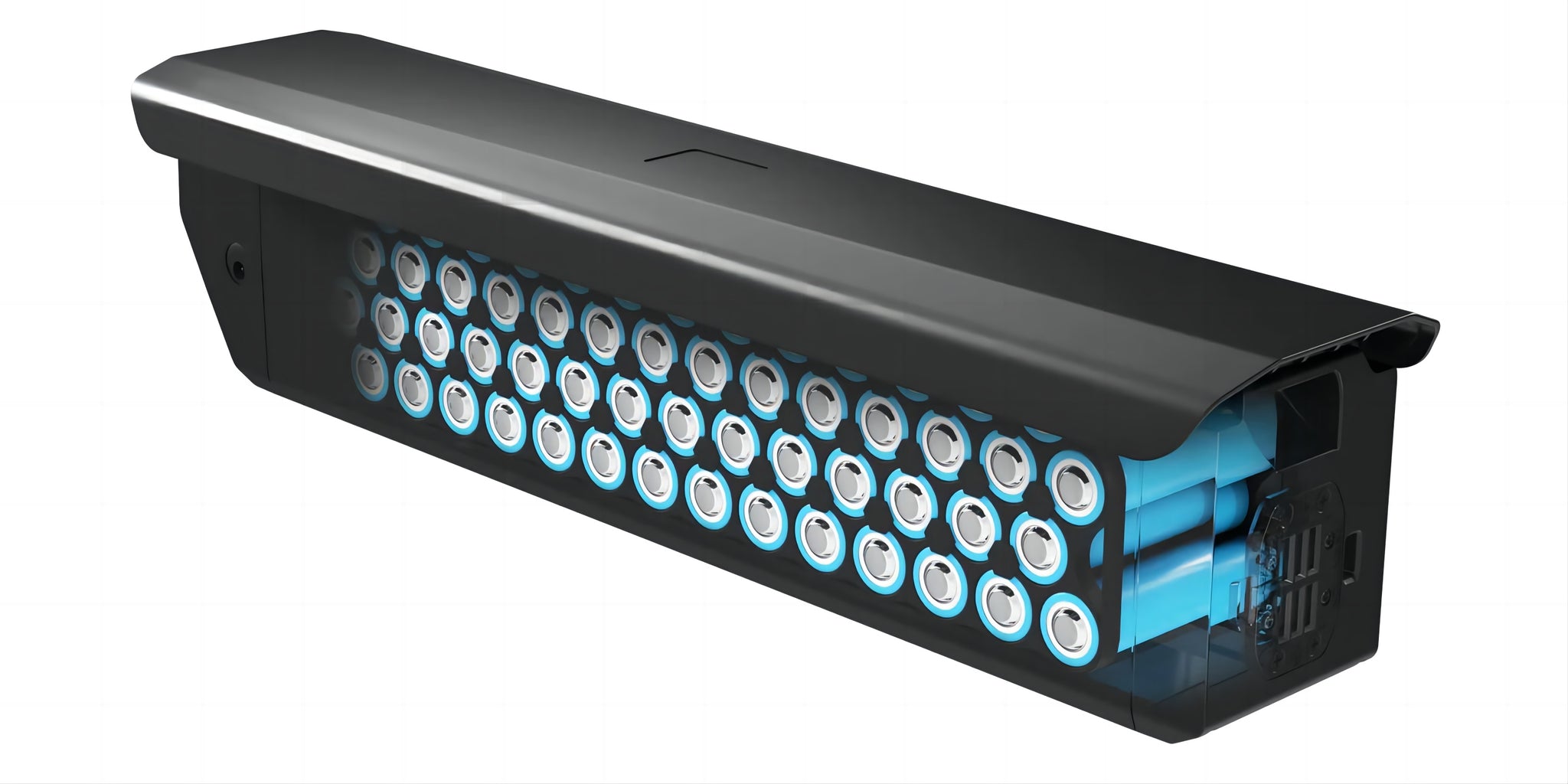

960Wh Samsung/LG Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
-
960 Wh
Battery Capacity -
Removable
Built-in Battery

400 lb. Payload With 2X Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
-
Aerospace Grade
Aluminum Frame

Fast Acceleration & Good Gradeability & Longer Lifespan

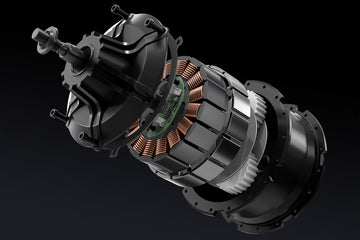

750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
750W
Motor Power -
86Nm
Max Motor Torque

The advantages of a Torque Sensor
Torque sensors offer efficient power delivery, extending battery life for more miles.This can feel much more natural than a bike with a cadence sensor, as it replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist.
Features

Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.

48V 500LM Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.

Customized Integrated Brake Light
The automatic brake light with Himiway logo will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.

Thumb Throttle
The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Rhino/Rhino pro.

Kenda All-terrain Fat Tire
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.



Easy to Assemble
Unboxing VideoTechnical Specifications
Geometry
-
A – total length78.7
-
B – handlebar height47
-
C – handlebar length28
-
D – wheelbase49.2
-
E – wheel diameter28.7
-
F – minimum seat height20.9
-
G – maximum seat height31.4
-
H – chain stay length19
-
I – frame stack24.6
-
J – frame reach17.8
-
K – effective top tube length24.4
-
L – head tube length5.5
-
M – head angle65°
-
N – standover heightST 22.4/ SO 31.1
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor750W Hub motor
-
DisplayKD718-P LCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel 170mm / Chain ring: 44T BCD104
-
FreewheelShimano CS-HG201-9 11-36T
-
ChainKMC E9 EPT 124L
-
GroupsetShimano altus M2000 9 speed
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemZoom TDS-C269-8FOV 31.8*90mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'1" ~ 6'5"
-
Weight79 lb. (with battery)
-
Max. payload capacity400 lb.
*Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components.
