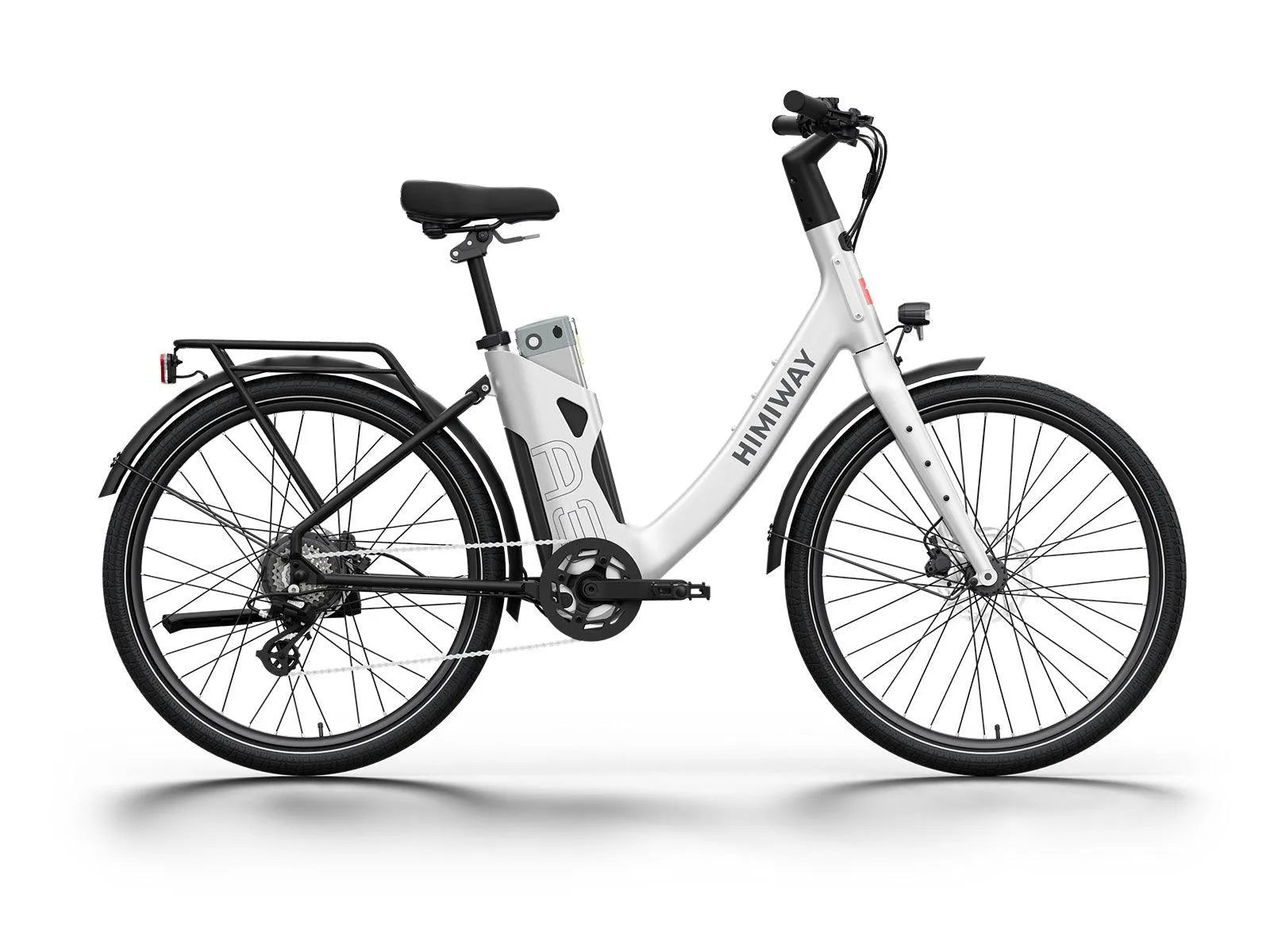

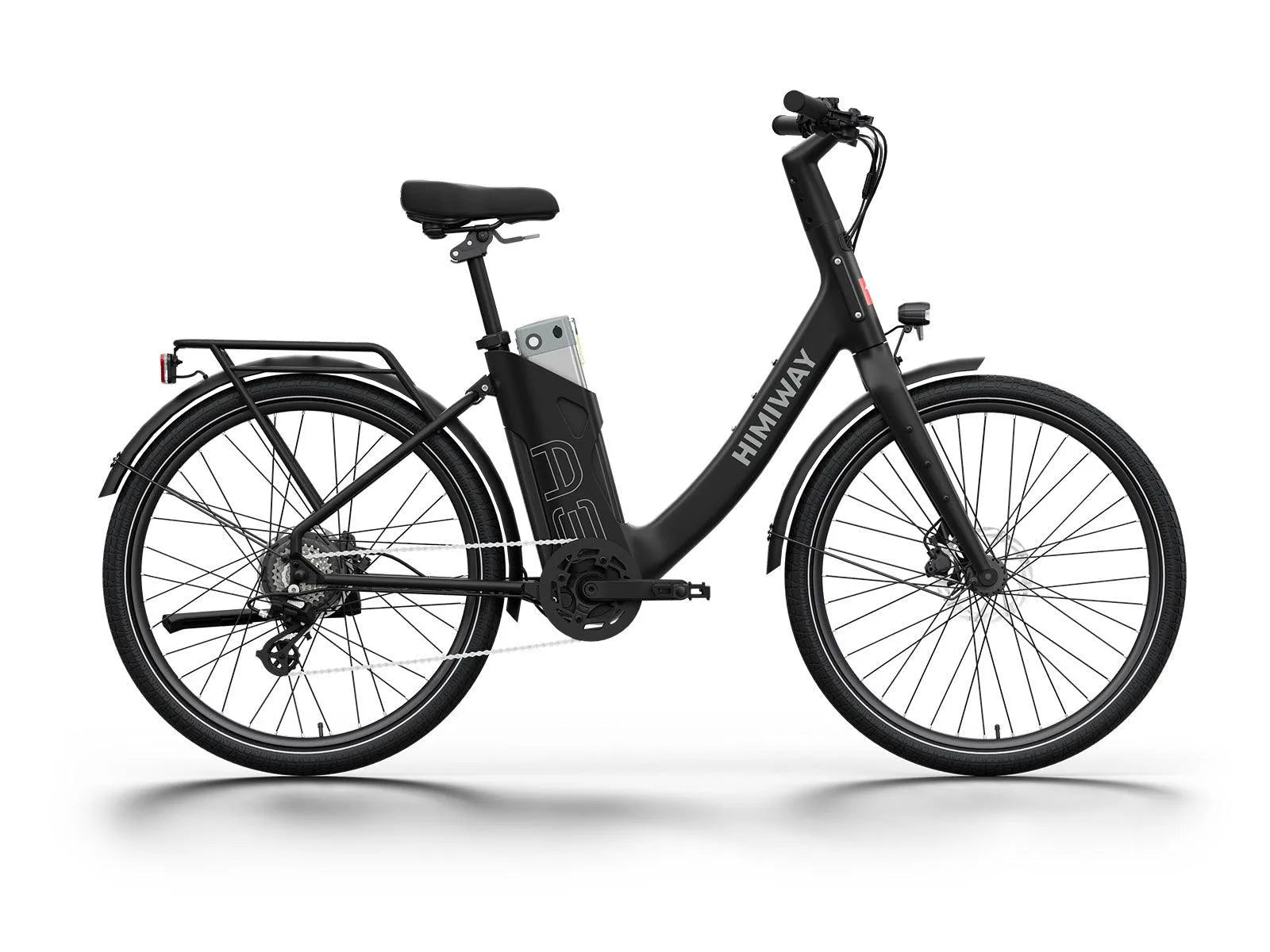

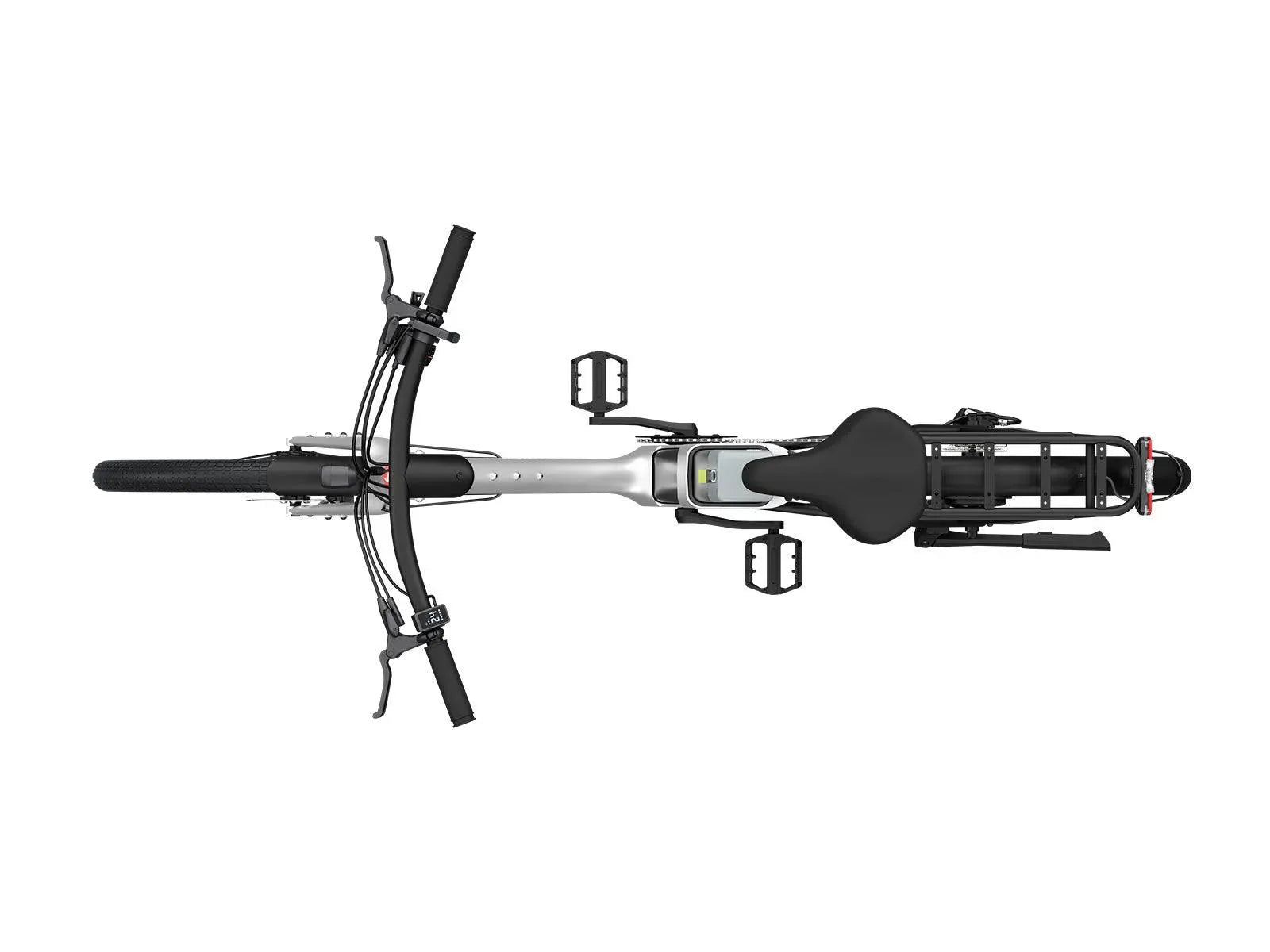

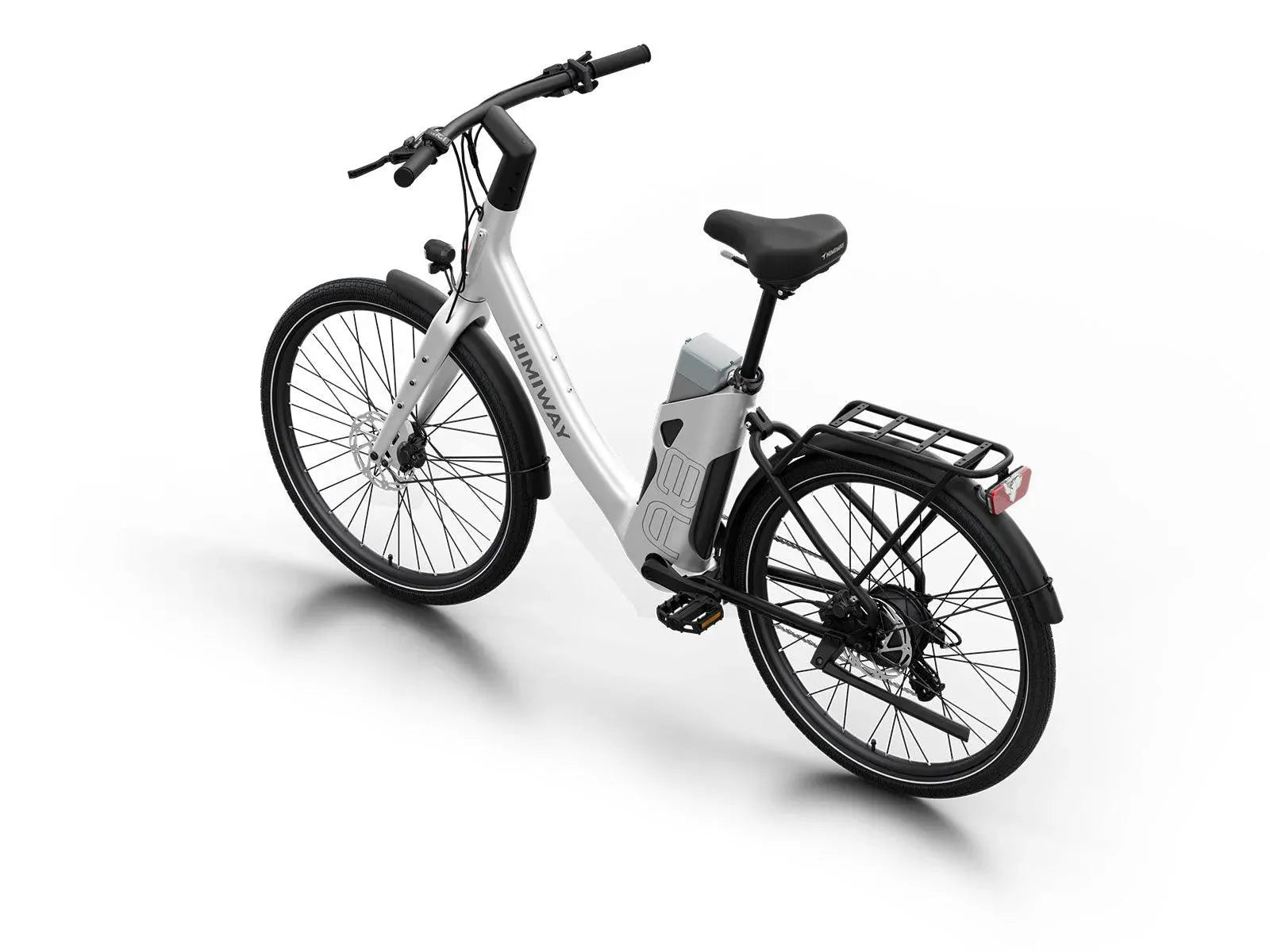

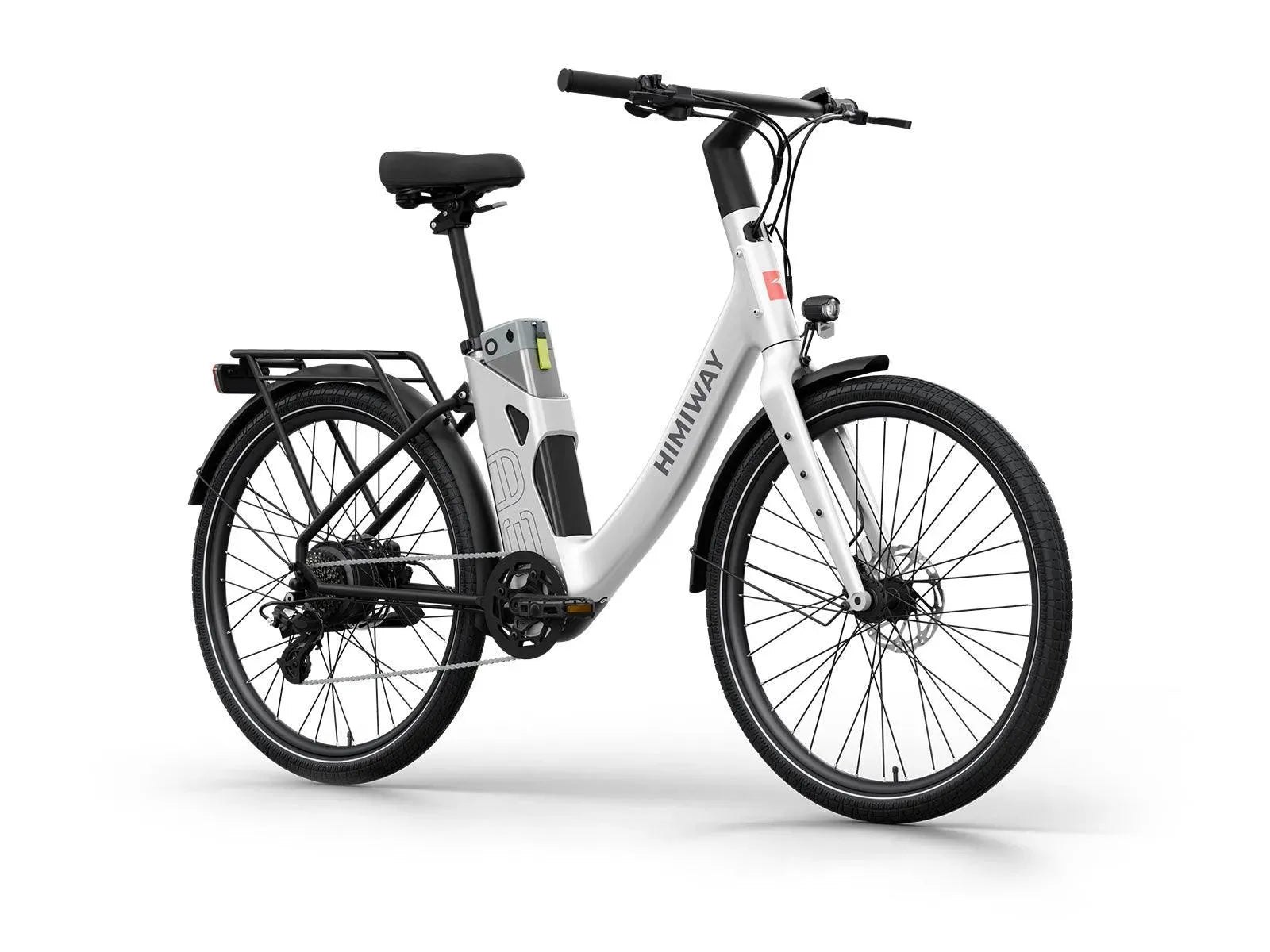

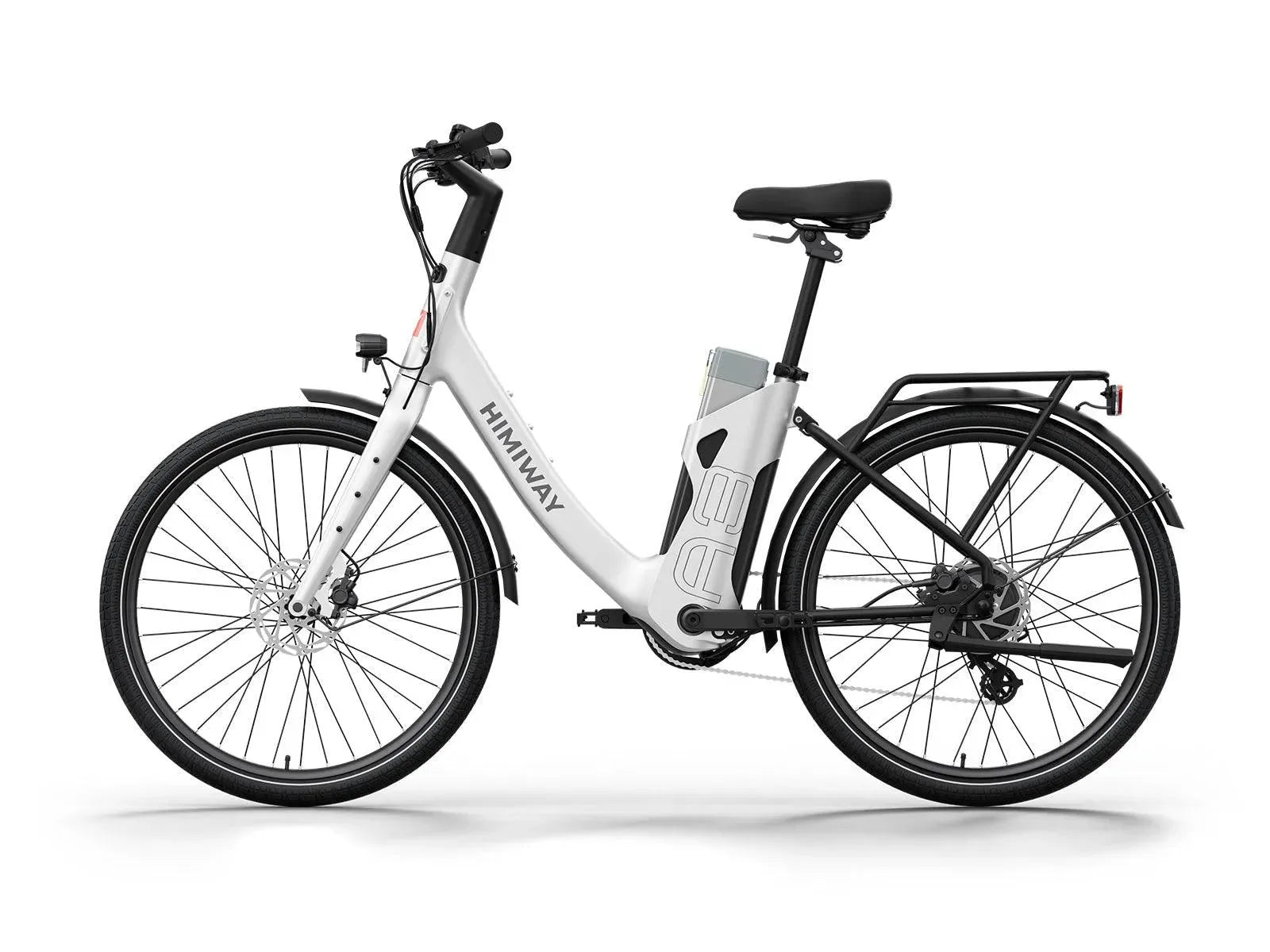

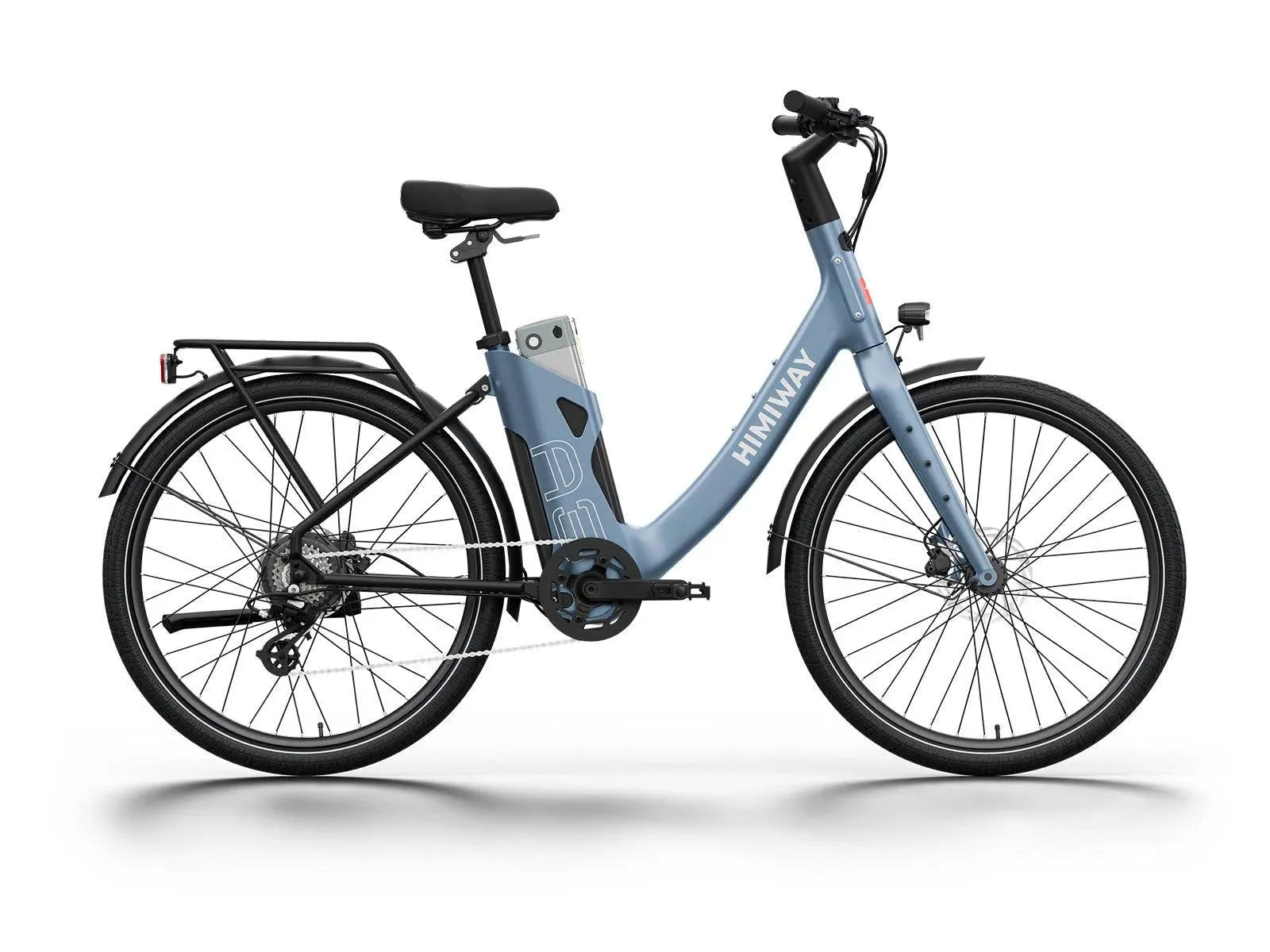

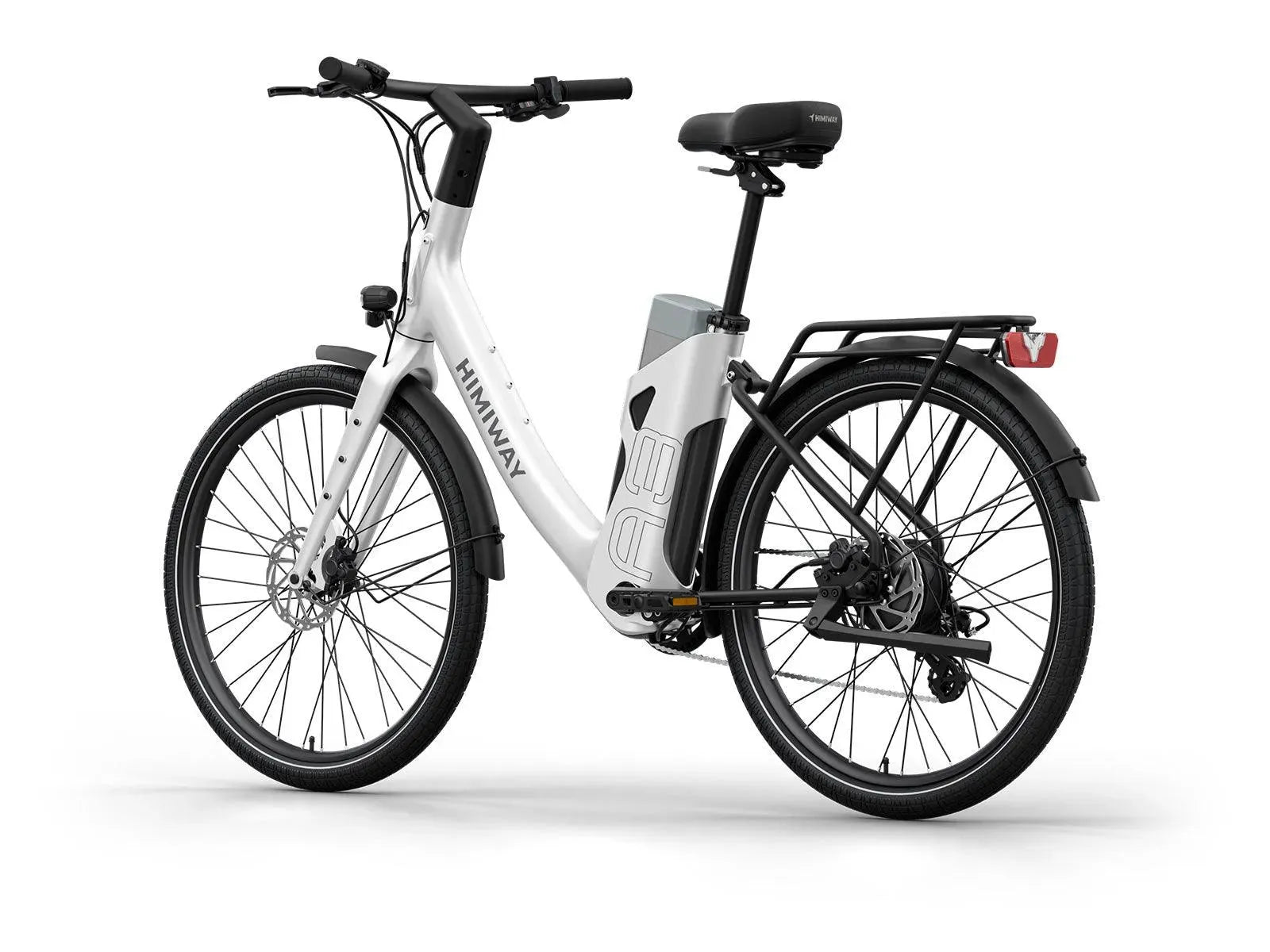

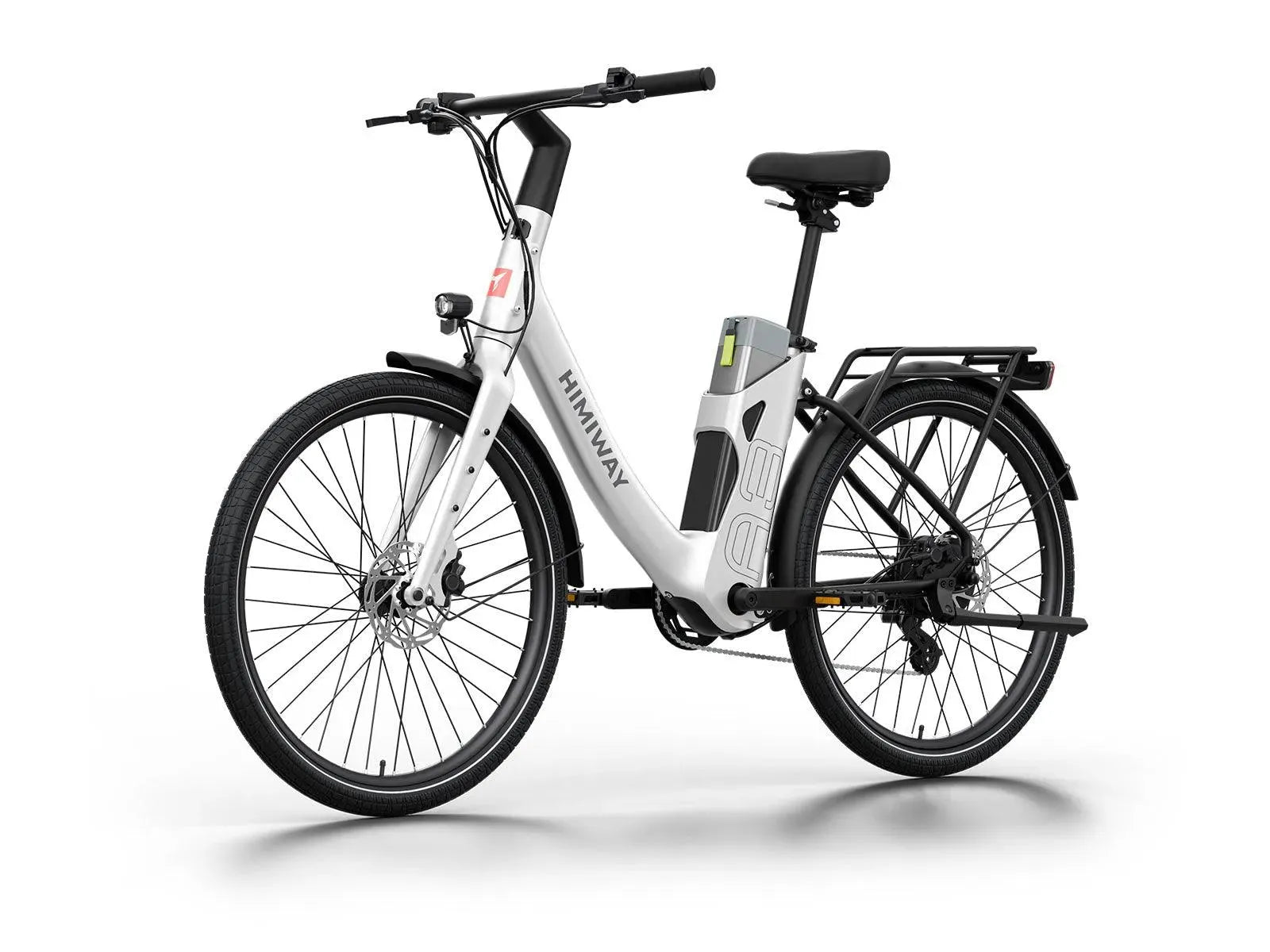

Himiway A3 | Urban Electric Commuter Bike

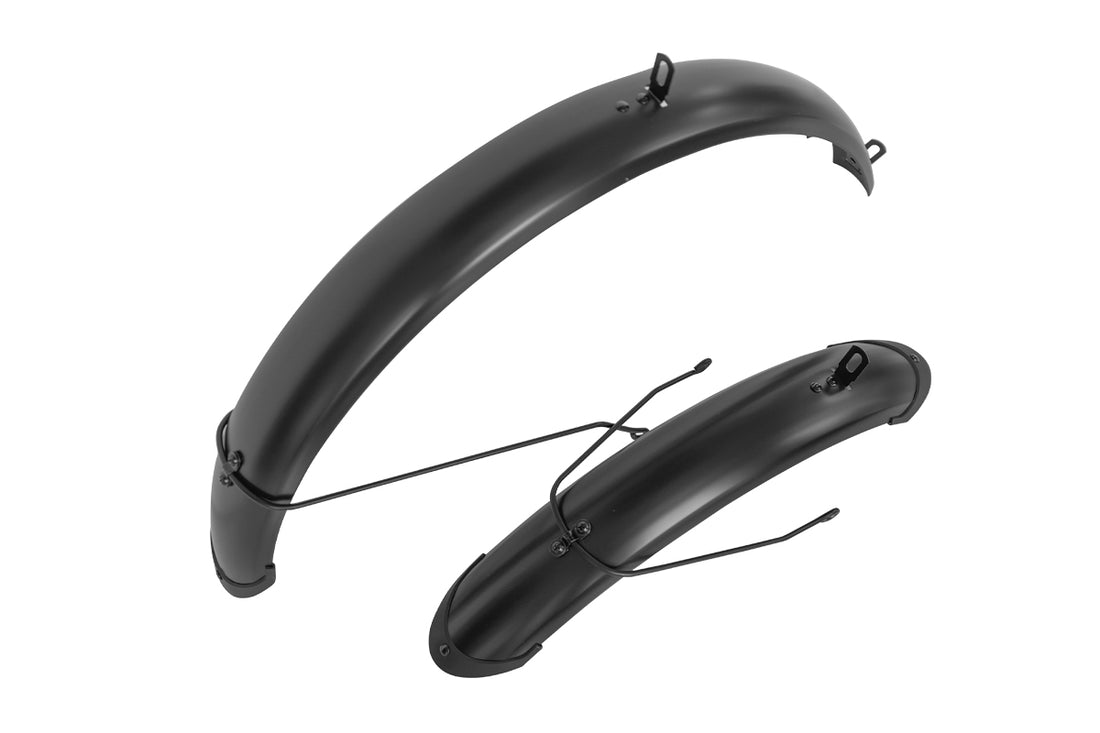

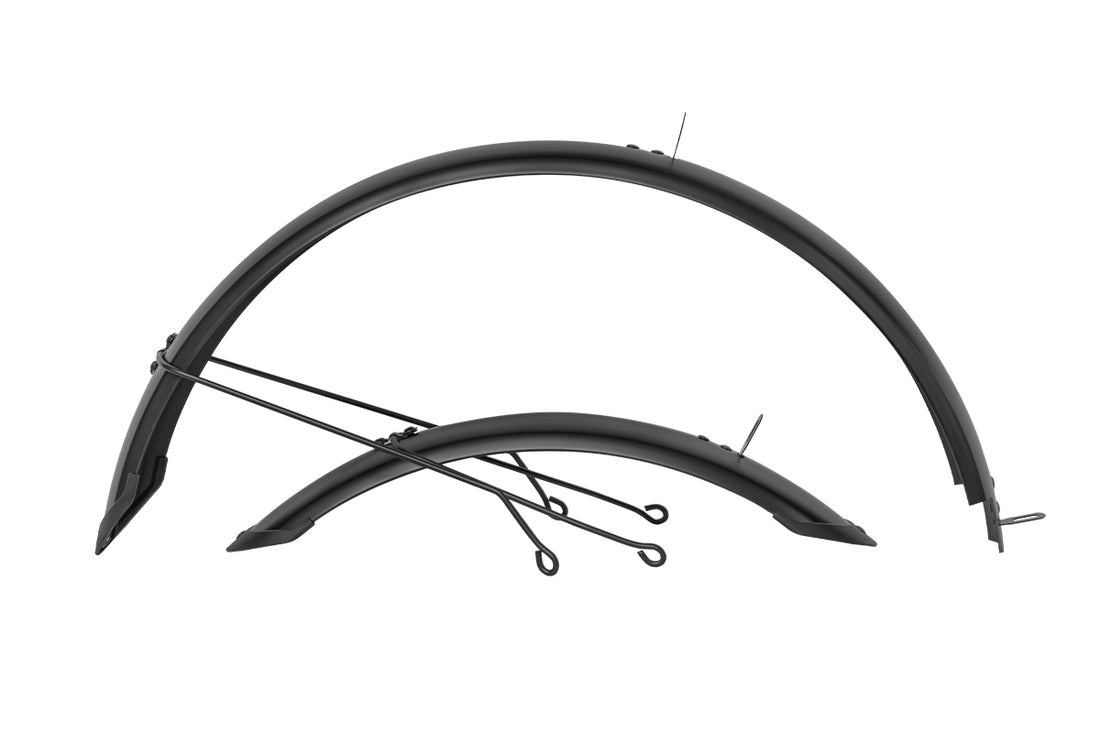

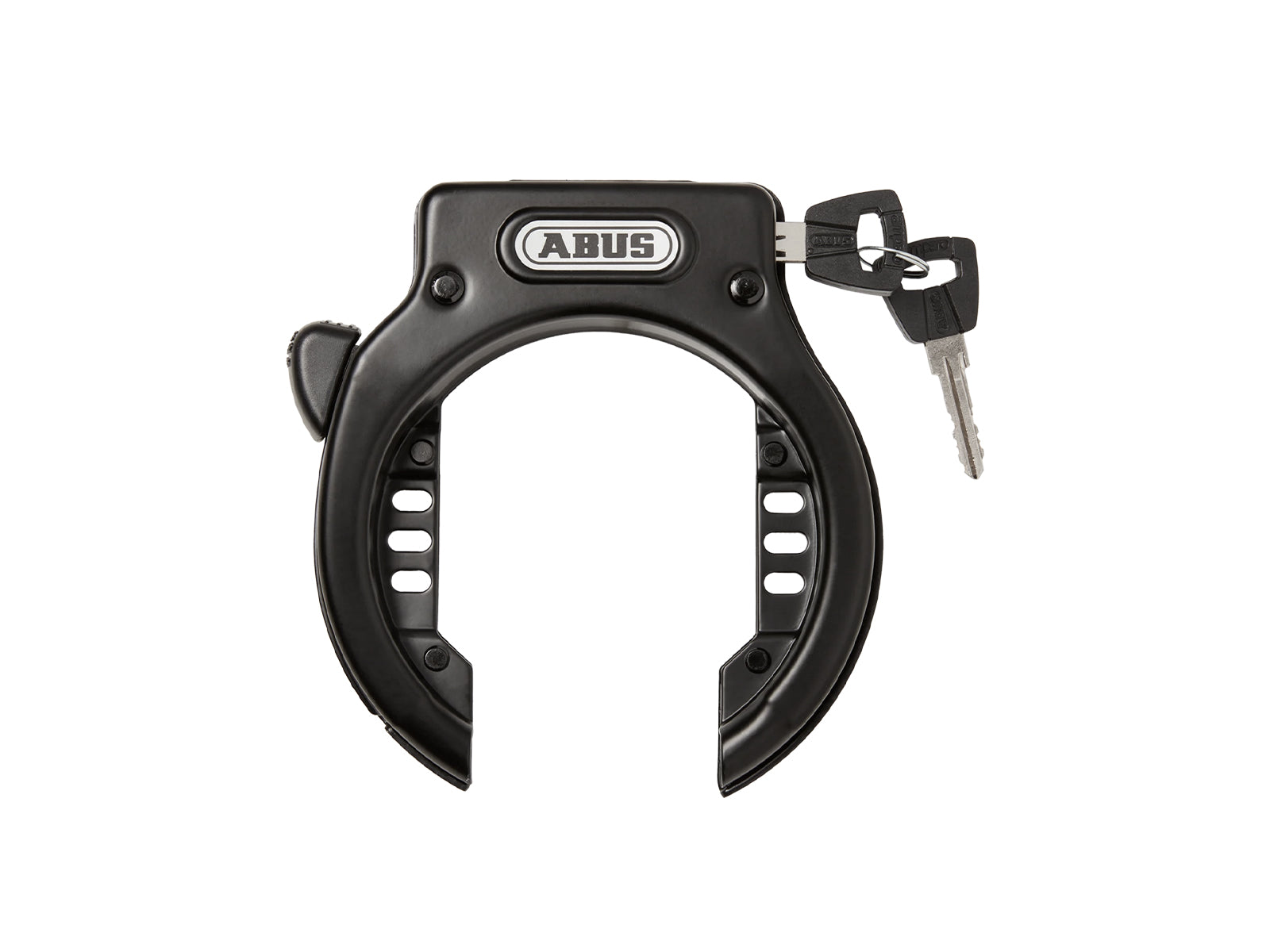

Compatible Accessories
Free accessories and bike not included.
Your discount will be added during checkout.
-
Availability: In Stock
-
Shipping:Within 2 Business Days
Extra $100 off 2 Bikes (Excluding D3)
When the discount conditions are met, the discount amount will be deducted automatically during checkout.
Couldn't load pickup availability
Technical Specifications
Geometry
-
A – total length70.6
-
B - handlebar height45.3
-
C – wheelbase43.8
-
D – minimum seat height24
-
E – maximum seat height31.8
-
F – chain stay length18.3
-
G – frame stack23.5
-
H – effective top tube length21.1
-
I – wheel diameter26.2
-
J – head tube length8.5
-
K – handlebar length26.7
-
L – frame reach16.4
-
M – head angle69°
-
N – standover height24.6
Specification
-
FrameFront: 6061 aluminum Rear:A356 Steel
-
HeadsetNeco A16M 44*44*30
-
Fork6061 aluminum 100*12mm thru axle, rack mounts, fender mounts, post disc mount
-
Front wheelRim: 26""*1.75*36H*13G A/V | Spoke: 13G*257.5MM/259.5MM | Hub: R303F-12 12g*36H 12*100mm
-
Rear wheelRim: 26""*1.75*36H*13G A/V | Spoke: 13G*225.5MM/226.5MM | Hub: 48v 500w Himiway Hub Motor
-
TiresInnova IA-2128 26*2.2 25-60PSI
-
Battery48V15AH LG 21700 IP65 720Wh
-
Motor500w Himiway brushless gear motor
-
DisplayHimiway LED Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-

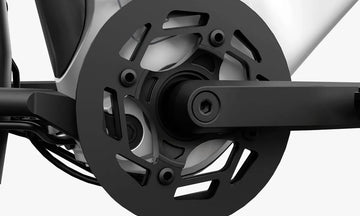

CranksetCrank arm:J6061-T6 170mm | Chain ring: 38T narrow wide steel chainring BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 112L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Rear brakeTektro HD-E3520 hydraulic brake
-
RotorsF:160mm R:160mm
Components
-
HandlebarHimiway integrated handlebar-Stem 680mm width*90mm stem
-
SeatpostHimiway flip seatpost 27.2*300
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandAdjustable aluminum kickstand
Others
-
Range70 miles
-
Controller48V/18A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1"~6'
-
Weight68.3 lb.
-
Max payload capacity300 lb.
-
Torque
Sensor
-
70 Miles
Per Charge (maximum)
-
500 W
Geared Hub Motor
-
720 Wh
Samsung/LG Battery
-
20+ Mph
Top Speed
-
7-Speed
Shimano Altus M310
-
300 Ib.
Payload Capacity
-
Hydraulic
Brakes
Recommended for you
Comparison

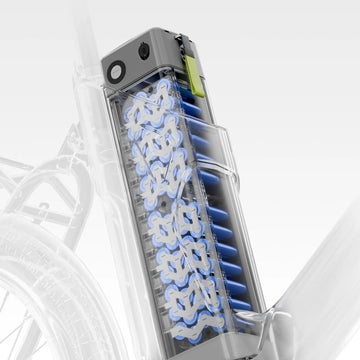

720Wh 48V 15Ah
Enjoy the Freedom of Longer Rides
70-mile
long RangeIP65
WaterproofThe A3 features removable 48V 15Ah Samsung/LG batteries, offering an impressive range of up to 70 miles. With a quick 5-hour charge time, you can enjoy your ride at any time, anywhere.

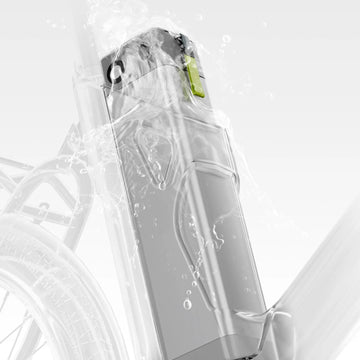

This bike's battery features an IP65 waterproof rating and is equipped with a bottom drainage channel, ensuring safety even in unforeseen heavy rainstorms.
AUTOMOTIVE TECHNOLOGY

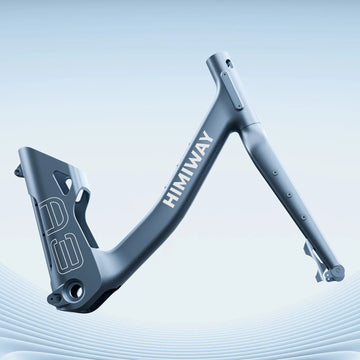

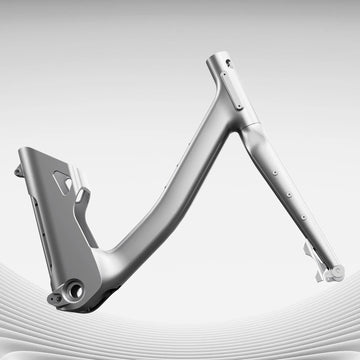

Unibody Construction Aluminium Alloy
Unibody
Construction6061
AluminiumThe Himiway A3 utilize unibody construction with built-in wiring, ditching the traditional screw-and-bolt assembly method. This design not only significantly boosts the ebike frame's strength and safety (compressive strength increased by 232% compared to non-unibody frames), but also enhances visual appeal.
-
Safer
Frame
-
Easier
Frame
Himiway A3 boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery.
-
300 Ib.
Payload Capacity
-
68 lb.
Weight
Perfect for Commuting
and Leisurely Rides
Torque Sensor
The torque sensor of A3 measures the force applied to the pedals, providing assistance based on your effort to create a more natural riding experience.

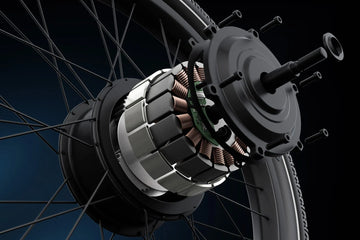

500W Brushless Geared Hub Motor
Experience superior performance with the Himiway 500W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.
Experience Top quality and comfort with A3

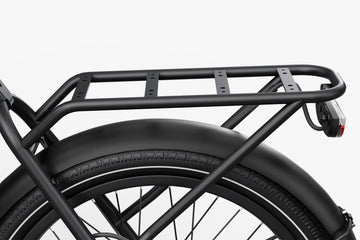

28 Mounting Points
Make A3 Yours

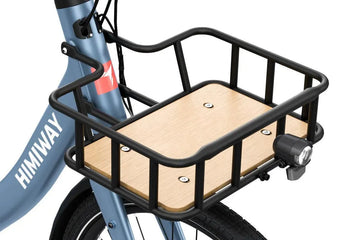

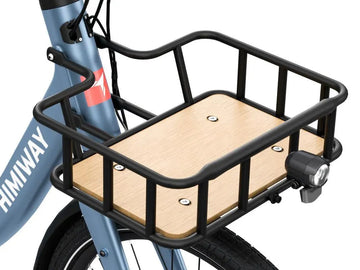

With a versatile design featuring up to 28 mounting points, the Himiway A3 offers ample opportunities for personalized customization to suit your preferences. Whether you need a rack, basket, bag, or child seat, you can select the accessories that best fit your needs, making Himiway A3 yours.

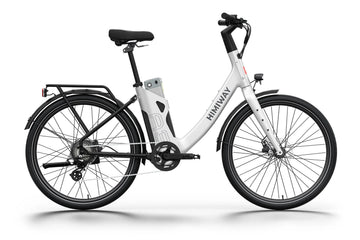

Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with A3
Selle Royal Saddle

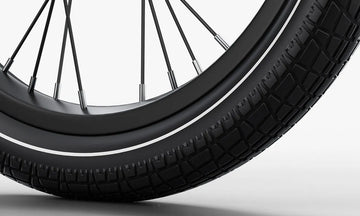

Reflective Sidewall Stripe

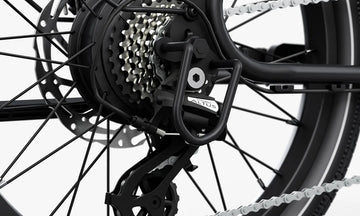

Shimano 7 Speed Gear Shift System
48V 500LM Luminosity Spotlight

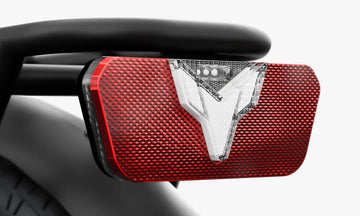

Customized Integrated Brake Light

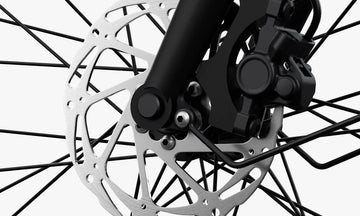

160mm Hydraulic Disc Brakes
Torque Sensor
Unlike traditional screw-assembled design,The A3 utilize unibody construction with built-in wiring. This design not only significantly boosts the frame's strength and safety, but also enhances visual appeal.
"The Himiway Rambler is a purely pedal-assisted proposition — and that’s OK, because as pedelecs go, it’s actually a pretty good one!"
Technical Specifications
Geometry
-
A – total length70.6
-
B - handlebar height45.3
-
C – wheelbase43.8
-
D – minimum seat height24
-
E – maximum seat height31.8
-
F – chain stay length18.3
-
G – frame stack23.5
-
H – effective top tube length21.1
-
I – wheel diameter26.2
-
J – head tube length8.5
-
K – handlebar length26.7
-
L – frame reach16.4
-
M – head angle69°
-
N – standover height24.6
Specification
-
FrameFront: 6061 aluminum Rear:A356 Steel
-
HeadsetNeco A16M 44*44*30
-
Fork6061 aluminum 100*12mm thru axle, rack mounts, fender mounts, post disc mount
-
Front wheelRim: 26""*1.75*36H*13G A/V | Spoke: 13G*257.5MM/259.5MM | Hub: R303F-12 12g*36H 12*100mm
-
Rear wheelRim: 26""*1.75*36H*13G A/V | Spoke: 13G*225.5MM/226.5MM | Hub: 48v 500w Himiway Hub Motor
-
TiresInnova IA-2128 26*2.2 25-60PSI
-
Battery48V15AH LG 21700 IP65 720Wh
-
Motor500w Himiway brushless gear motor
-
DisplayHimiway LED Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrank arm:J6061-T6 170mm | Chain ring: 38T narrow wide steel chainring BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 112L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Rear brakeTektro HD-E3520 hydraulic brake
-
RotorsF:160mm R:160mm
Components
-
HandlebarHimiway integrated handlebar-Stem 680mm width*90mm stem
-
SeatpostHimiway flip seatpost 27.2*300
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandAdjustable aluminum kickstand
Others
-
Range70 miles
-
Controller48V/18A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1"~6'
-
Weight68.3 lb.
-
Max payload capacity300 lb.
Reviews
Seems like an amazing all around bike. Wish it was a little smaller, but still really good range, speed, and features.
I can't wait to receive my Himiway A3, and I'm especially excited about its impressive range. I envision myself riding around on this beautiful blue ebike and being a sight to see on the road.
