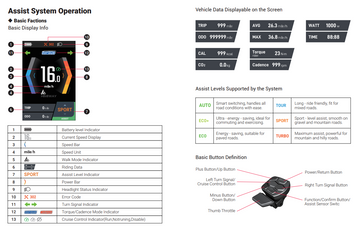

Basic Display Info
The Himiway electric bike display provides essential riding information and system status at a glance. Understanding these indicators is the first step before using the assist system or changing advanced settings.
For normal riding, you mainly need to pay attention to battery level, current speed, assist level, and power output. The other indicators provide additional information when specific functions are activated.
For example, the Torque/Cadence indicator helps you confirm the current pedal-assist mode, while the error-code area can help identify a system issue when troubleshooting.
Once you are familiar with these basic display indicators, you can move on to operating the assist system and adjusting its advanced settings.
Vehicle Data Displayable on the Screen
Basic Button Definition
Button Functions
| Button | Function |
|---|---|
| Power Button | Long press to power on/off; Short press during riding to switch auto-assist mode. Acts as an exit button in the setting interface. |
| Function Button (M) | Short press: On the main interface, switch vehicle data; on the settings interface, confirm the selection. Long press: When the vehicle is in motion, switch between torque and cadence modes; when stationary, enter the settings. |
| Assist Sensor Switch Button (M) | While riding, press and hold the "M" button to switch between Torque Mode and Cadence Mode in real time. This setting is temporarily effective; for permanent changes, please configure it in "Assist Sensor Switch". |
| Plus Button (+) | Short press during riding to increase assist level; acts as selection button in the setting interface. Adjusting speed during cruise control; press and hold to turn on the headlight. |
| Minus Button (-) | Short press during riding to decrease assist level; acts as selection button in the setting interface. Adjusting speed during cruise control; press and hold to activate the walk mode. |
| Left/Right Turn Signal Button | Short press to turn on the turn signal, short press again to turn off. |
| Hazard Warning Lights Button | Press and hold the left and right turn signal buttons simultaneously to activate the hazard lights. Press either the left or right turn signal button briefly to deactivate them. |
| Cruise Control Button | When the assist speed exceeds 5 MPH, press and hold the left turn signal button to activate cruise control. Press and hold it again to deactivate it; you must read "Cruise Control Setting" below before using this feature. |
NOTICE
To provide you with a better user experience, we will continuously upgrade the vehicle system. Therefore, there may be some discrepancies between your vehicle system and the instruction manual. Please refer to the actual situation.
Enter Setting Menu
After powering on, press the 'M' button ('Function button'for 2s to enter the password interface, and enter the password 0510, (Presiss the 'upshift button'or downshift button' to input numbers, and press the 'Fundction button' briefly after inputting the first password to switch to the next input:) after the password input press 'Function button' briefly to submit the password to access the settings menu.
'5' flashes to indicate the digit being input;
'-' indicates the digit that has not yet been input.
Setting Menu
General Settings
Assist Speed Setting
E-Bikes Class Setting
Assist Mode Setting
Assist Torque Setting
Assist Ratio Setting
Torque Cadence Switch
Cruise Control Setting
How to Use the Cruise Control Function
Enable Activation
This function is disabled by default at the factory. Please go to "Cruise Control Setting", select "Enable", and confirm.
Activate Cruise Control
Method 1: When in any mode except OFF and the speed exceeds 5 MPH, press and hold the left turn signal button for 1 second.
Method 2: When in any mode except OFF, use the throttle to maintain a constant speed (exceeding 5 MPH) for more than 3 seconds.
Deactivate Cruise Control
Method 1: Press and hold the left turn signal button for 1 second while cruise control is active.
Method 2: Press the throttle.
Method 3: Adjust AUTO mode.
Method 4: Switch between Torque Mode and Cadence Mode.
Method 5: Pedal the bike.
Method 6: Squeeze the brake.
Adjusting Speed During Cruise Control
Press the Plus Button or Minus Button to increase or decrease the cruise speed, with each press changing the speed by 2 MPH.
System And OTA
Factory Reset
Reset the display to the default state.
System Info
OTA Upgrade
