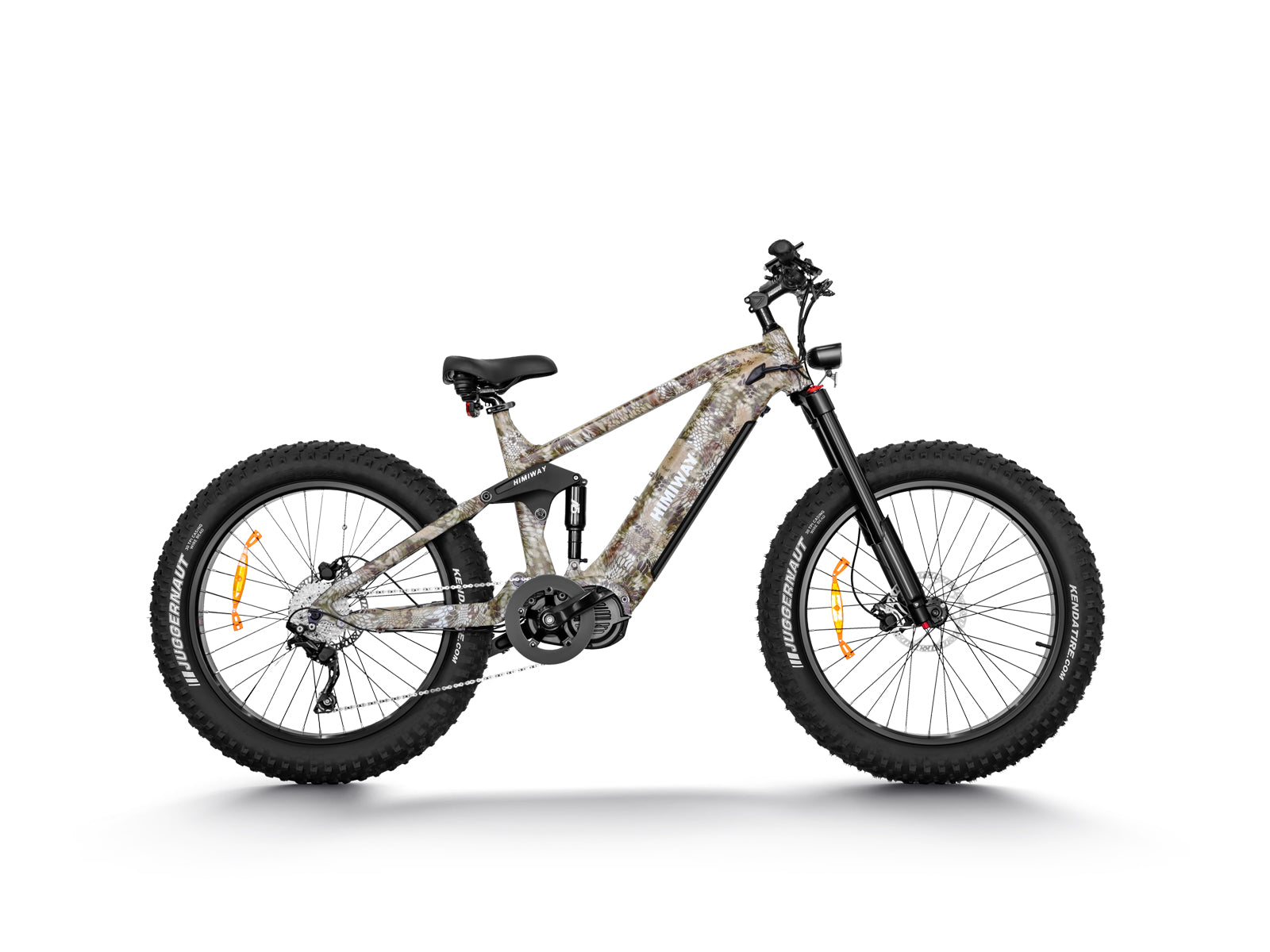

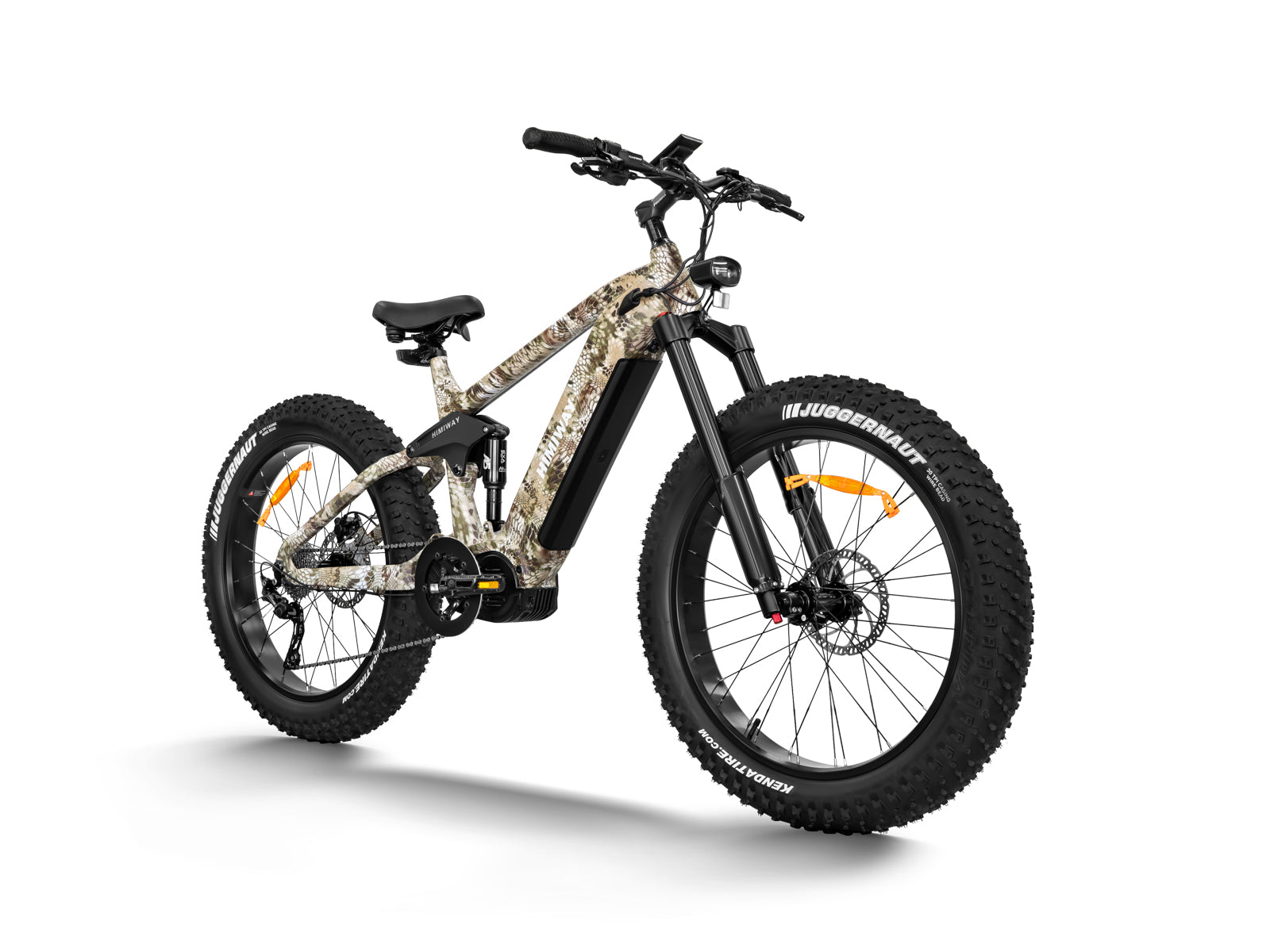

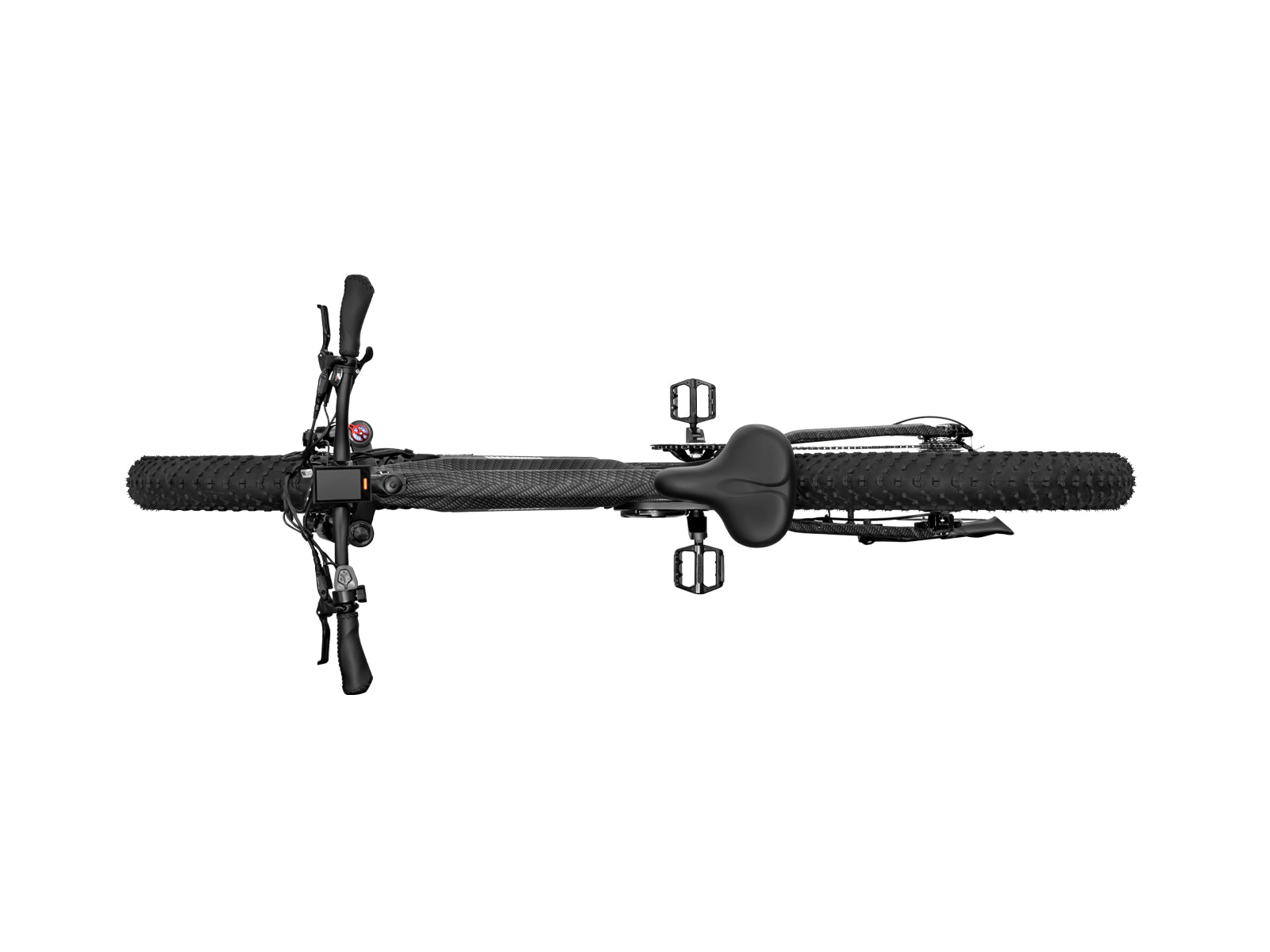

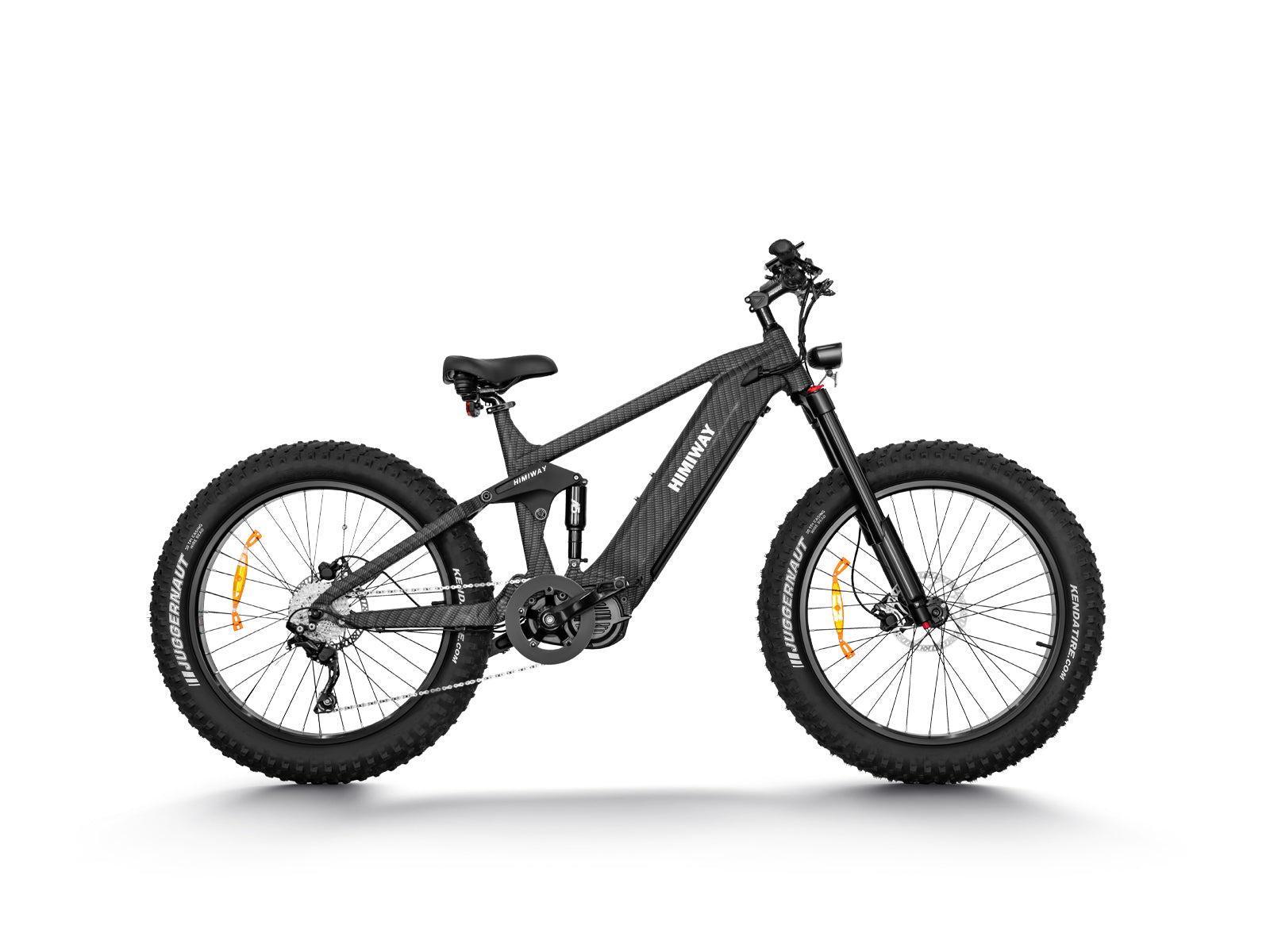

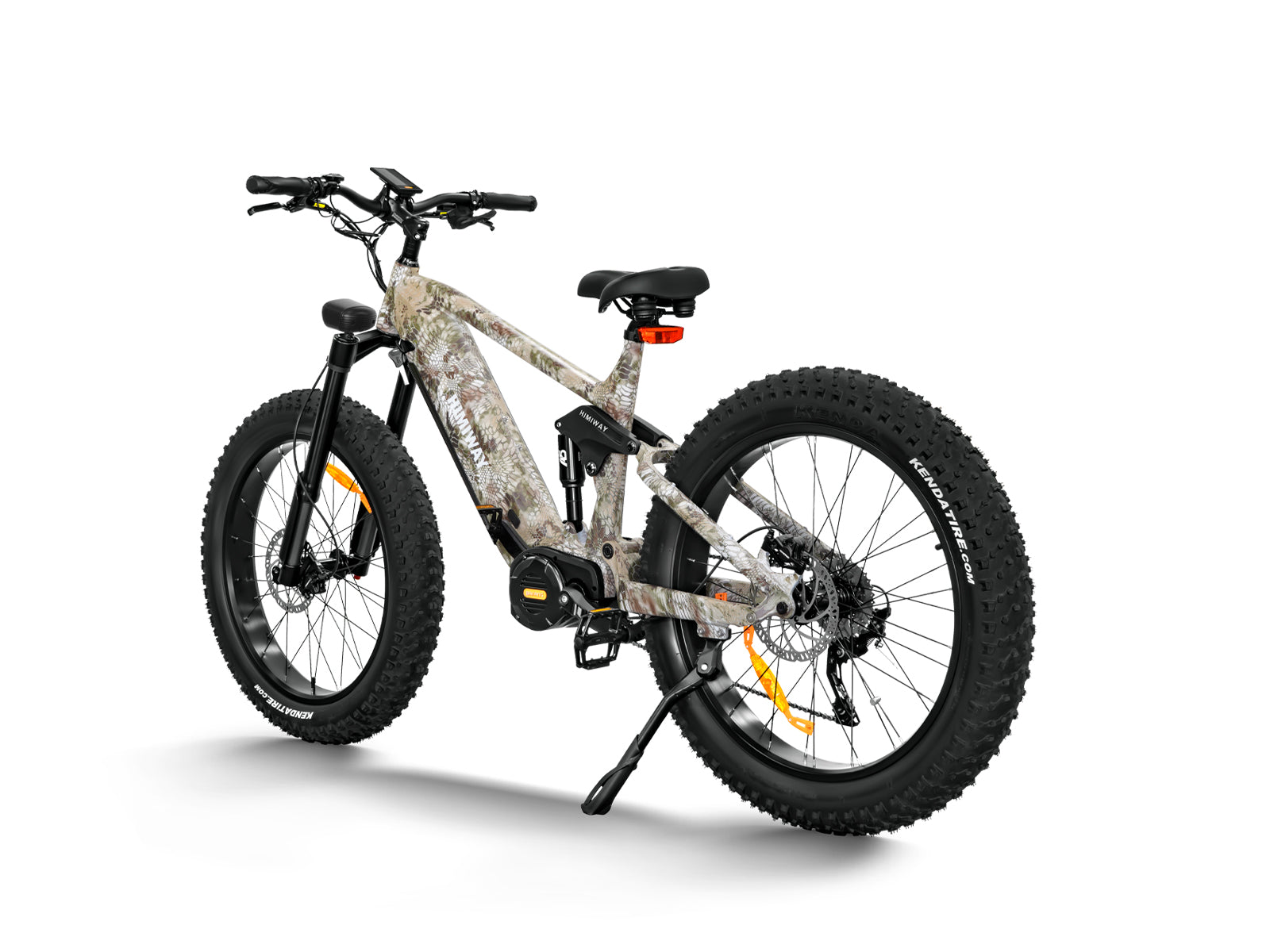

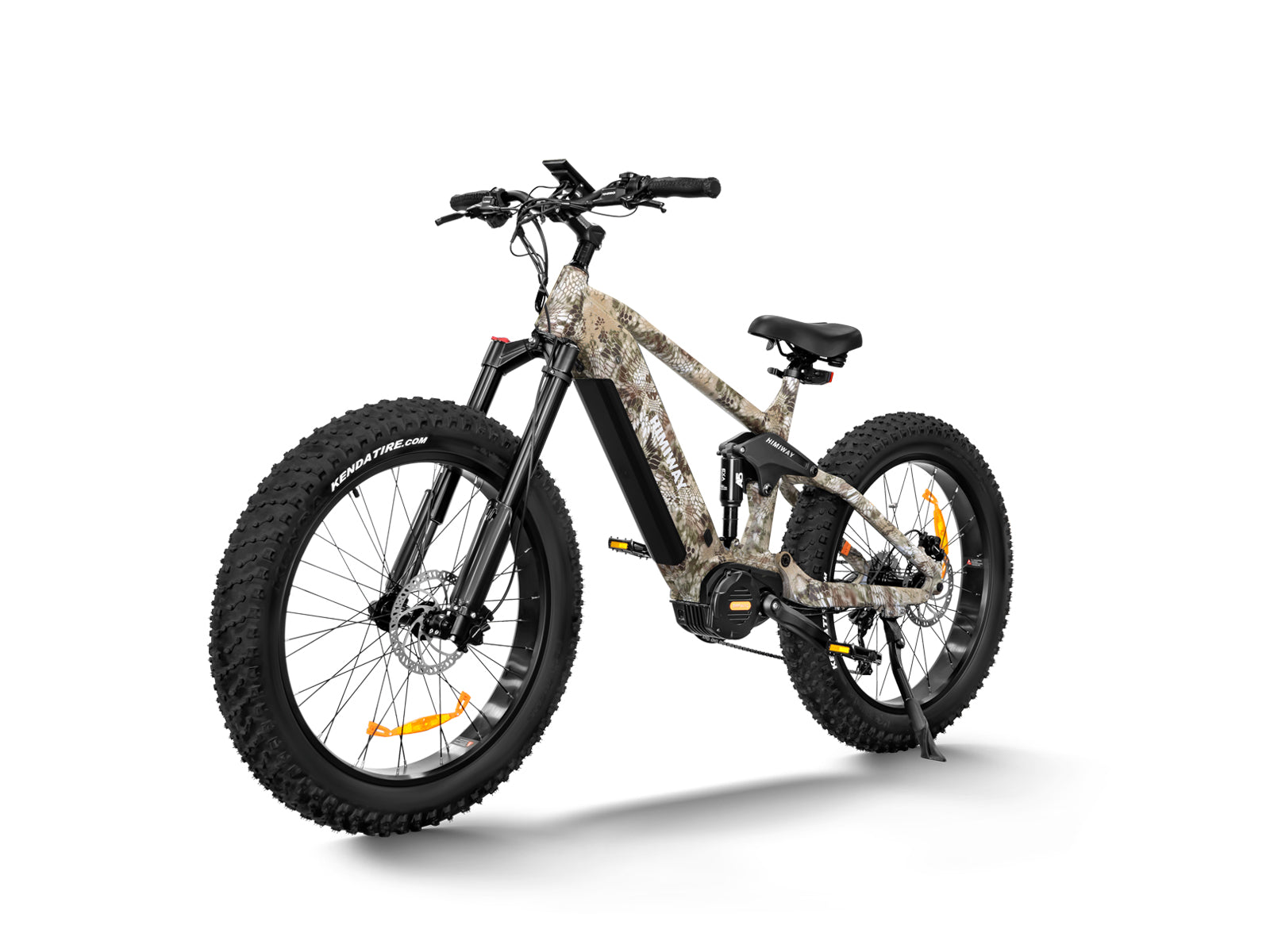

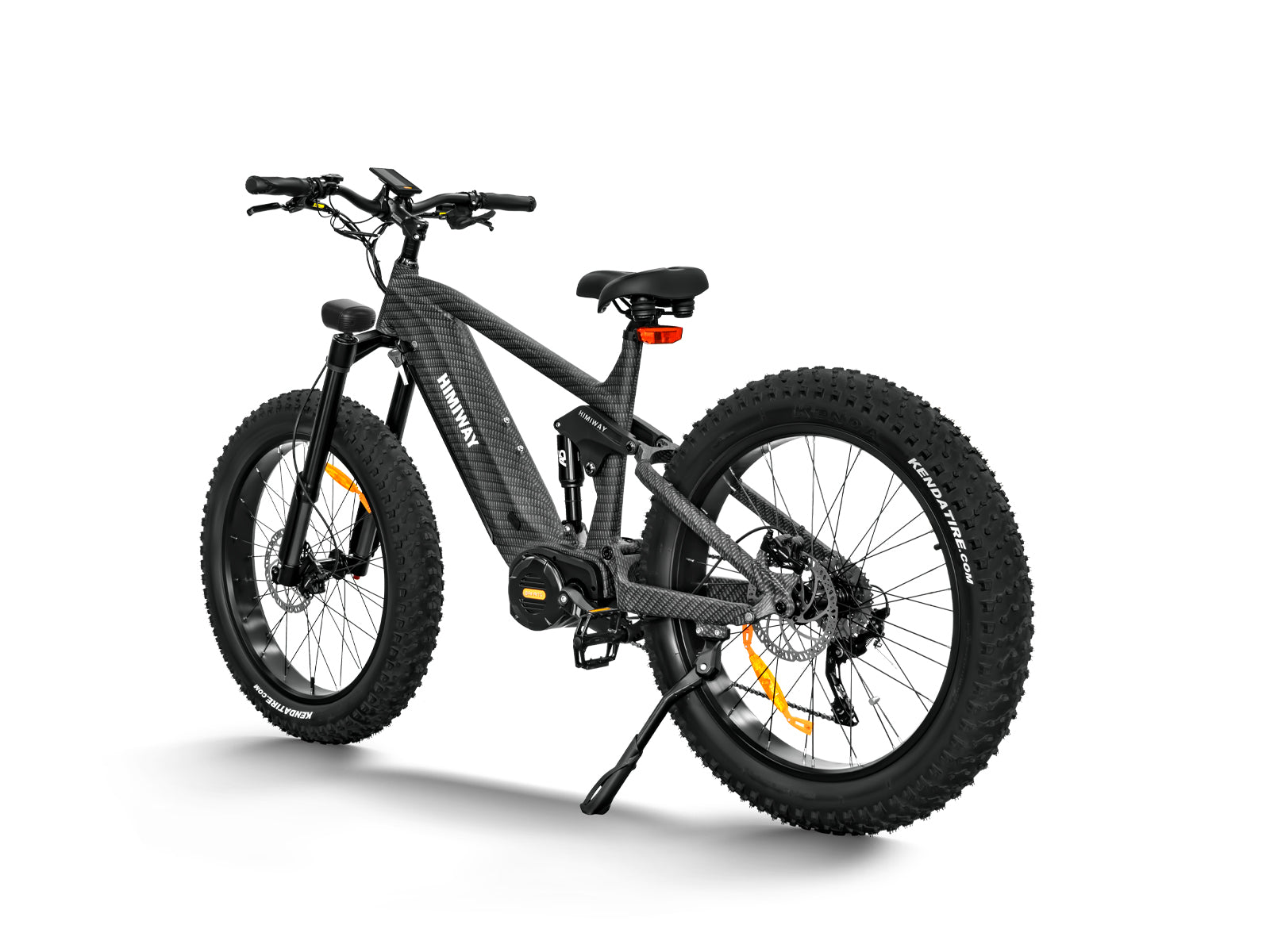

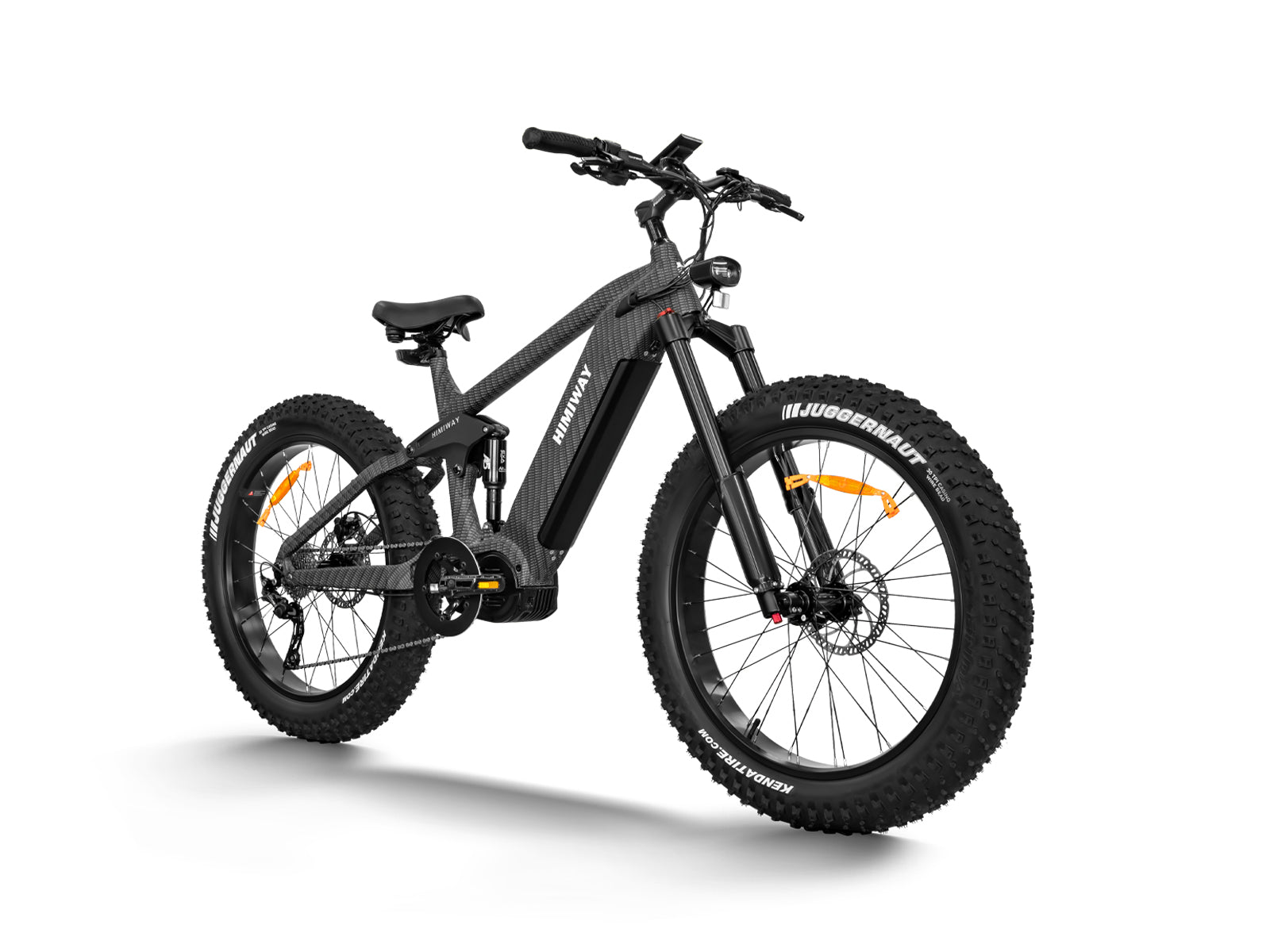

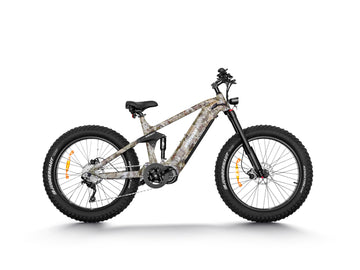

Cobra Pro/ Softail Electric Mountain Bike
-
Shipping:
-
1000 W
Mid-drive Motor
-
28 Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
960 Wh
Samsung/LG Battery
-
80 Miles
Max Range The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
26x4.8
Super Fat Tire
-
10-Speed
Shimano Derailleur
- 1 - Reach speeds of up to 20 mph, No pedaling required.
- 2 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
Comparison
Go Full Throttle with Full Suspension
It is the first e-bike on the U.S. market with four-bar linkage suspension technology, complemented with 4.8” CST fat tires, these specialize in absorbing both rear-upward force and vibrations, which allows you to ride safely over rutted trails, deep snow, and soft sand without taxing the rider.
-
Full
suspension -
400 lbs
Payload
Bafang 1000W Mid-Drive Motor
With a 160Nm mid-drive motor, you get the power for tackling steep slopes or quick acceleration from a standstill. Coupled with a 1300w peak power and torque sensors ideal for mountain biking, you can effortlessly conquer even the most rugged terrains.
-
1000w
1300w Peak -
160Nm
Torque
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
-
Hydraulic
Braking -
180mm
Disc brake
Shimano 10-speed Gear Shift System
The Shimano 10 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.
960Wh Samsung/LG Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
-
960 Wh
Battery Capacity -
Removable
Built-in Battery
Technical Specifications
Geometry
-
A - total length82.6
-
B - handlebar height42.9
-
C - wheelbase51.1
-
D - minimum seat height30.3
-
E - maximum seat height37
-
F - chain stay length19.7
-
G - standover height33
-
H - top tube length24
-
I - wheel diameter30.3
-
J - head tube length5.1
-
K - handlebar length27.6
Specification
-
Frame6061 Aluminum horst-link frame
-
ForkInverted air fork, 120mm travel, 150*15mm thru axle
-
ShockDNM A0-38RC, 190*45mm
-
Front wheelHub:150*15mm,36h
Spoke: 13G
Rim:26*80mm,36h -
Rear wheelHub:197*12mm,36h
Spoke: 13G Rim:26*80mm,36h -
TiresCST Roly Poly 26*4.8"
-
Battery48V 20Ah
-
MotorBaFang M620 1000W mid-drive motor
-
DisplayLCD display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor speed sensor丨brake sensor
-
CranksetCrank arm: M620 (Fat) 170mm
Chain ring: 44T BCD130 narrow wide chainring -
CassetteShimano CS-HG500-10 11-34T
-
ChainKMC E10S-EPT 124L
-
GroupsetShiminao Deore M6000 10 speed
-
Front brakeTektro HD-E350
-
Rear brakeTektro HD-E350
-
RotorsF: 180mm R: 180mm
Components
-
StemAlloy stem, 90mm length
-
HandlebarAlloy handlebar, 700 width
-
SeatpostAlloy seatpost, 30.9*350mm
-
SaddleSelle Royal A054UE
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/25A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′5″ ~ 6′5″
-
Weight88.6 lb.
-
Max. payload capacity400 lb.
*Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components.
