Himiway D5 (Zebra) | Premium All-terrain Electric Fat Bike
Extra $100 off Cadence Sensor Style
Automatic Discount: When the discount conditions are met, the discount amount will be deducted automatically during checkout.
D5 (Zebra)
High-Step-
Shipping Time:Within 2 Business Days
Compatible Accessories
Couldn't load pickup availability
Technical Specifications
Geometry
-
A – total length78.7
-
B – handlebar height47
-
C – handlebar length28
-
D – wheelbase49.2
-
E – wheel diameter28.7
-
F – minimum seat height20.9
-
G – maximum seat height31.4
-
H – chain stay length19
-
I – frame stack24.6
-
J – frame reach17.8
-
K – effective top tube length24.4
-
L – head tube length5.5
-
M – head angle65°
-
N – standover heightST 22.4/ SO 31.1
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0""*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleThumb throttle Zebra: Half twist throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Rear brakeTektro HD-E3520 hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemZoom TDS-C269-8FOV 31.8*90mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-

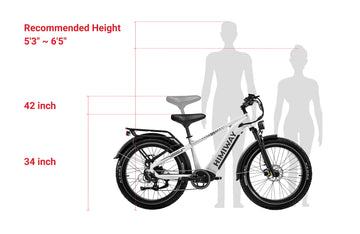

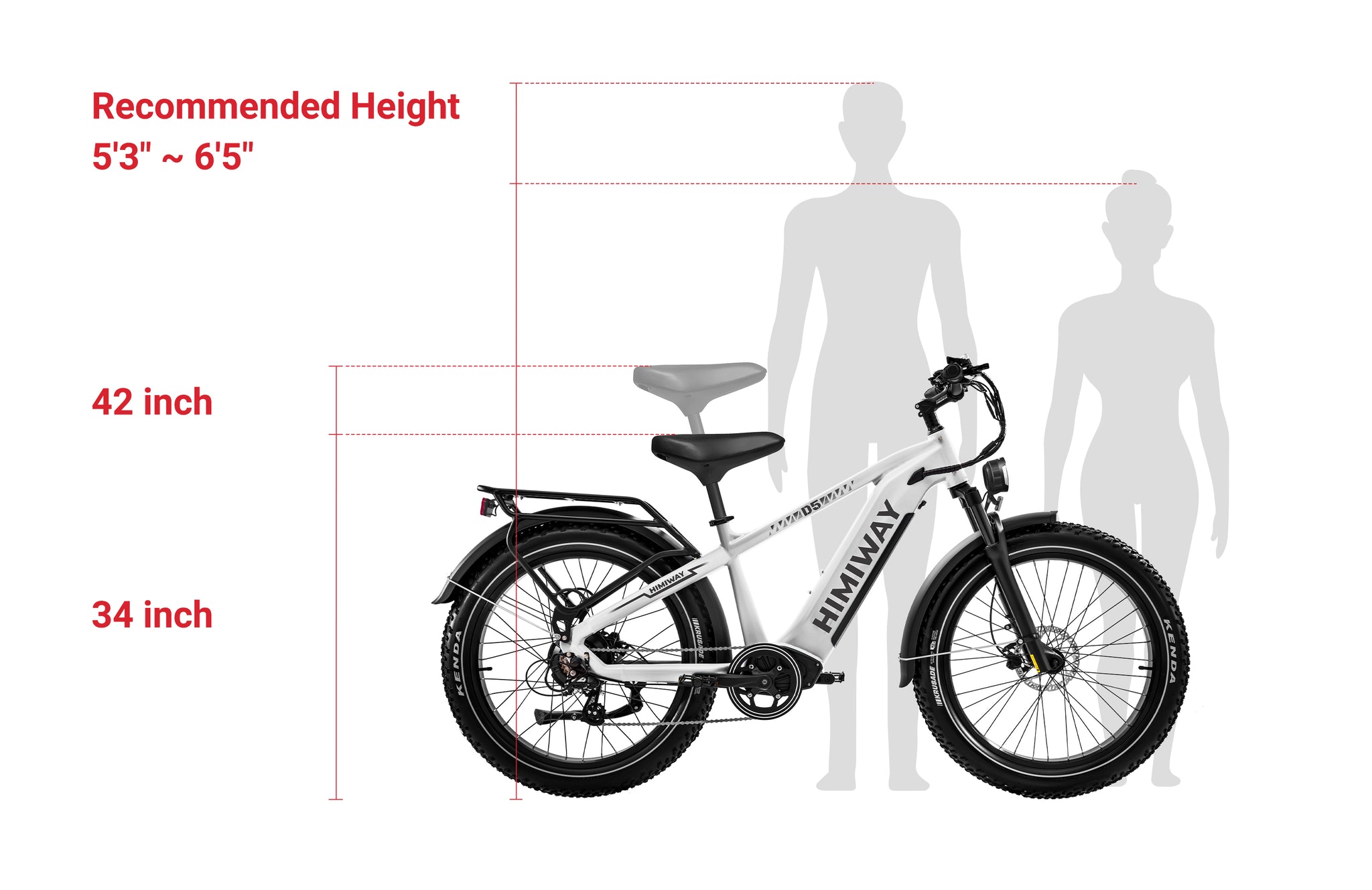

Rider height5′3″ ~ 6′5″
-
Weight79 lb. (with battery)
-
Max. payload capacity400 lb.
- 1 - Zebra: Half twist throttle
-
Torque
Sensor
-
960 Wh
Samsung/LG Battery
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
750 W
Brushless Gear Motor
-
20+ Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
400 lb.
Payload Capacity
-
26x4 "
Kenda Fat Tire
-
Hydraulic
Brakes
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - Reach speeds of up to 20 mph, No pedaling required.
Comparison
Go Further Than Ever
Himiway D5 (Zebra), the updated version of Himiway D3 (Cruiser), is equipped with a powerful 750W gear hub motor, hydraulic Brakes, 400 lbs payload capacity, and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebra ebike is 80 miles with pedal assist and 60 miles range with pure electric power. Keep wild on Himiway.
The advantages of a Torque Sensor
This can feel much more natural than a bike with a cadence sensor, as it replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise. Torque sensors can also be more efficient than cadence sensors, as the power delivered is based on the actual effort you put into the pedals and updates in real time. This efficiency can often mean you can eke extra miles out of a battery charge.
Long Range Expert
960Wh High-performance Lithium-ion Battery
960 Wh
48V 20AhBMS
Ensure your SafetyIt combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
Temperature Control
Updated 750W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
D5
Hub MotorFOC
Field oriented control750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
750 W
Brushless Gear Motor
-
86 Nm
Max Torque
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
Gain Extra Payload With 2X Thicker Frame
2X Thicker
Aerospace Grade Aluminum FrameRemovable Battery
Built-in designIt boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
-
400 lb.
Payload Capacity
-
79 lb.
Weight
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.
clear at a glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
LCD Display
Left Handle
Right Handle
The Backlit LCD display provides information on speed, mileage, power, etc. (D5 Zebra Space Gray uses Curtis instrument)
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set
-
Switch
-
Light ON/OFF
-
Info
-
Half twist throttle
-
Shimano gearbox
-
Bell
The Kenda All-terrain Fat Tire
26"x4"
All Terrain26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
-
Grasses
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
"The Himiway Zebra is a solid all-season e-bike with good performance, and it's reasonably priced at $1,699."
"The Himiway Zebra emerges as a commendable choice for those seeking a robust, occasional-use e-bike, particularly in urban settings."
"The Himiway Zebra is a solid e-bike that provides riders with a comfortable, stable, and accessible ride, whether for daily commutes or leisurely rides."
"If you’re looking for something to cart kids around on or handle a weekly supermarket shop - this might be a good option, provided you have good bike handling skills and ground-level storage."
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5
Selle Royal Saddle
The Selle Royal Saddle features a comfortable and ergonomic design specially made for pressure relief. Enjoy healthy & happy long-distance riding!
Customized Integrated Brake Light
The automatic brake light with Himiway logo will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.
48V 500LM Luminosity Spotlight
The Himiway team has developed a spotlight that is 20% brighter than standard LED lights. Visibility is improved to guarantee your safety while riding at night.
Torque Sensor
Torque sensors enhance riding by adjusting assistance based on pedal force for efficiency, providing extra mileage compared to cadence sensors. Upgraded safety prevents sudden acceleration. Pedaling is comfortable with less effort, while our 20Ah battery extends ride duration.
Thumb Throttle
Enhanced control and quicker response with a safer, more efficient brake-throttle separation, ideal for navigating busy streets.
Integrated Brake Light
The automatic brake light will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.
180mm Hydraulic Disc Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Half Twist Throttle
The Half-twist throttle helps prevent accidental activation, protecting you from inadvertent injuries.
Selle Royal Saddle
The Selle Royal Saddle features a comfortable and ergonomic design specially made for pressure relief. Enjoy healthy & happy long-distance riding!
Reflective Sidewall Stripe
Reflective sidewall stripe for additional visibility
Rear Rack
The rear rack with pre-installed hardware is quick and easy to be installed.
48V Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.
Front Fork Suspension
Alloy front suspension fork has 80mm of travel, preload adjustment, and lockout.
Shimano 7 Speed Gear Shift System
The Shimano 7 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find any speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.
Technical Specifications
Geometry
-
A – total length78.7
-
B – handlebar height47
-
C – handlebar length28
-
D – wheelbase49.2
-
E – wheel diameter28.7
-
F – minimum seat height20.9
-
G – maximum seat height31.4
-
H – chain stay length19
-
I – frame stack24.6
-
J – frame reach17.8
-
K – effective top tube length24.4
-
L – head tube length5.5
-
M – head angle65°
-
N – standover heightST 22.4/ SO 31.1
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0""*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleThumb throttle Zebra: Half twist throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Rear brakeTektro HD-E3520 hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemZoom TDS-C269-8FOV 31.8*90mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′3″ ~ 6′5″
-
Weight79 lb. (with battery)
-
Max. payload capacity400 lb.
- 1 - Zebra: Half twist throttle
